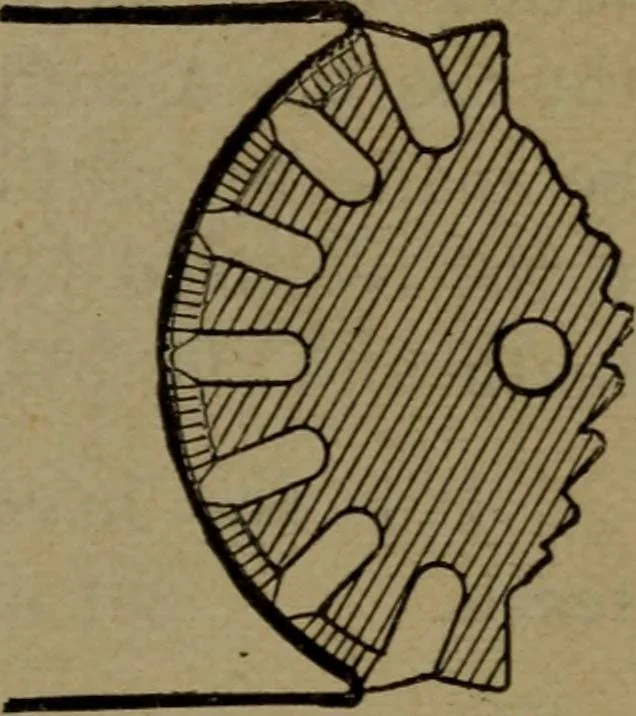

in each half of the yoke. The area of the air gap is not the whole area of the poleface, for with an air gap 1-16 inch long* there is a bunch-ing of the lines to a greater or less extent, as shown inFig. 33. It is important to calculate the areaof the air gap carefully, for on this willdepend the… … Figure 33 Bunchingof magneticlines in air gap. There are 48 sloits in a disc 7^2inches in diameter and each slot is .230inches wide; the circumference of thedisc is 23.55. Each slot and toothtake up 23.55 divided by 48 equals .491.This leaves the top of the tooth .491— .230 equals .261 wide. The…
