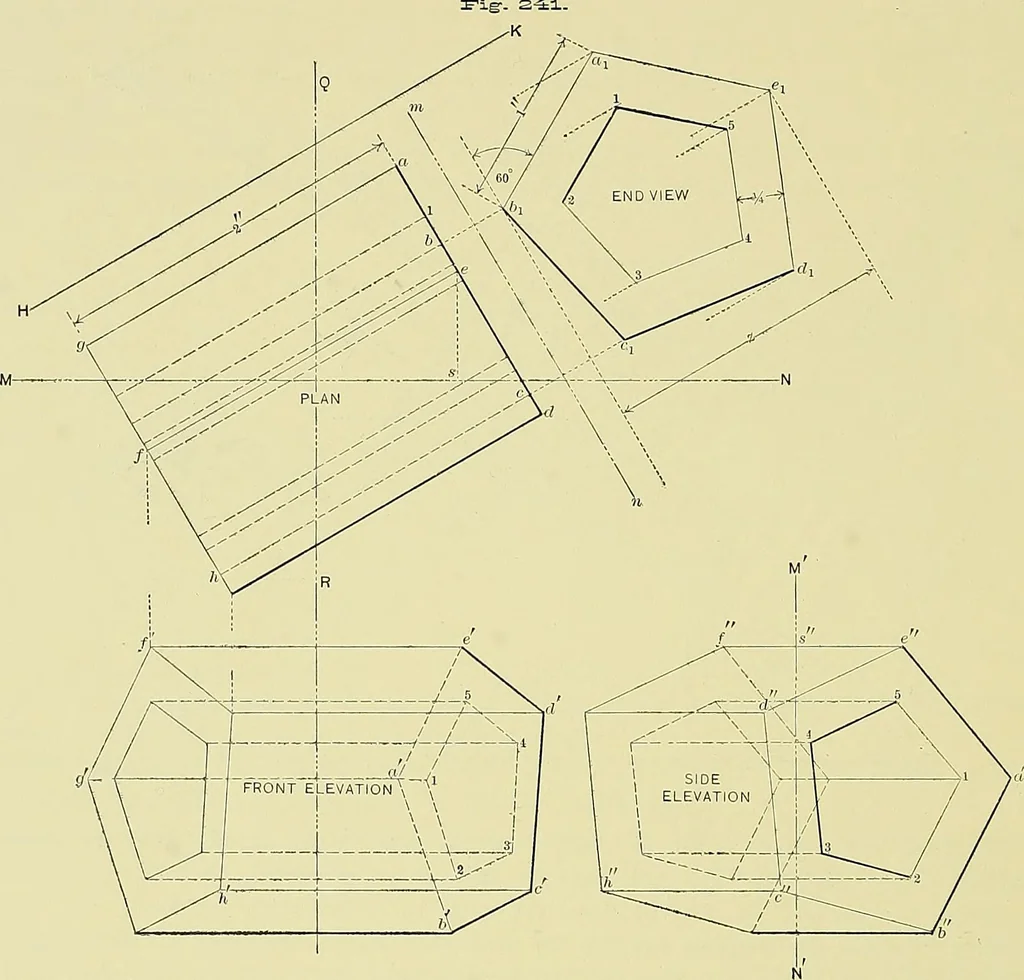

o a e through v and representing the joathof rotation. Finding u^ similarly we have a^i^v^e as the actual size of the face in question. If more views were needed than are shown the student ought to have no difficulty in theirconstruction, as no new principles would be involved. 399. To draw a… … In Fig. 241 let HK h% parallel to the plans of the axis and edges; it will make 35° with ahorizontal line. Perpendicular to HK draw mn as the h. t. of an auxiliary, vertical plane, uponwhich we may suppose the base of the prism projected. In end view all the faces of the prismwould be seen as Ihm,…
