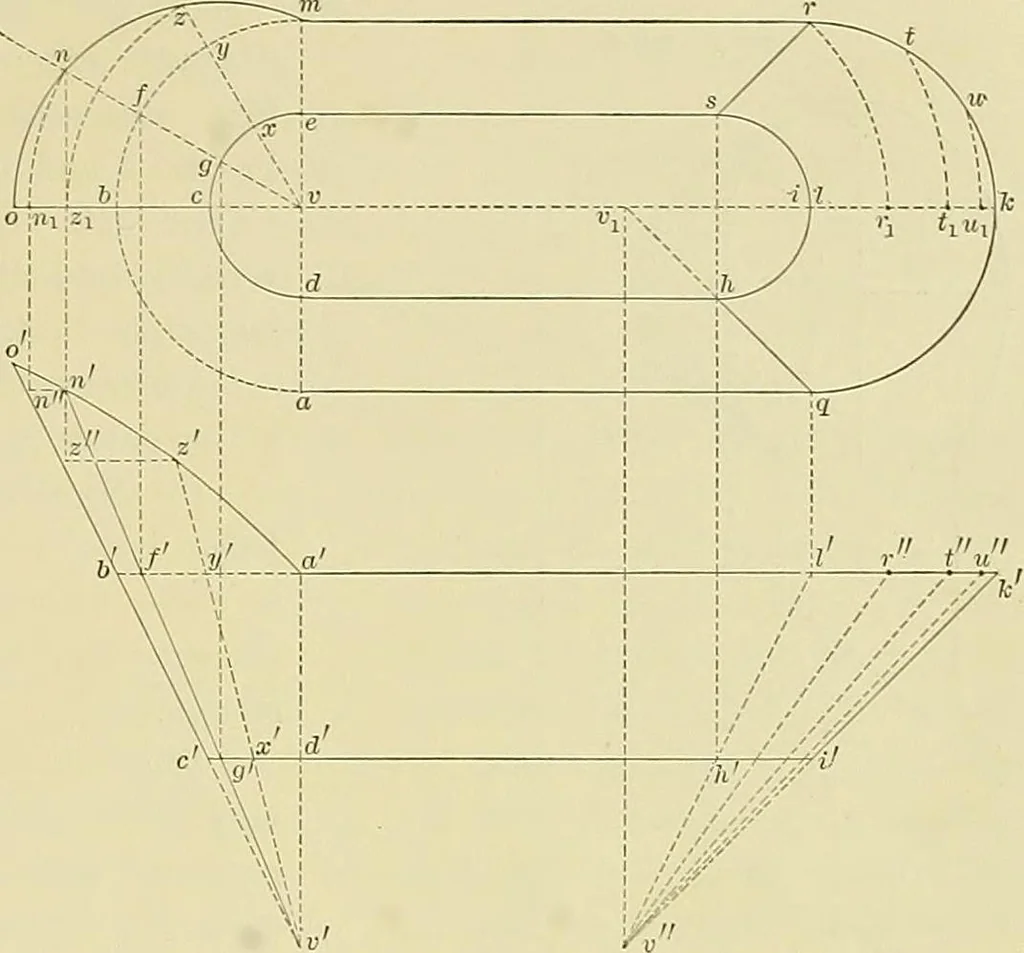

the tub iscomposed of an oblique cone whose section, /(/«, with the bottom is equal to ecd, and whose baseangle is hik\ we project / to /, draw //: at the given angle to the base, jDroject h to Ic, andthrough the latter draw the semicircle r I q with radius b i\ obtaining the plan of the upper…
