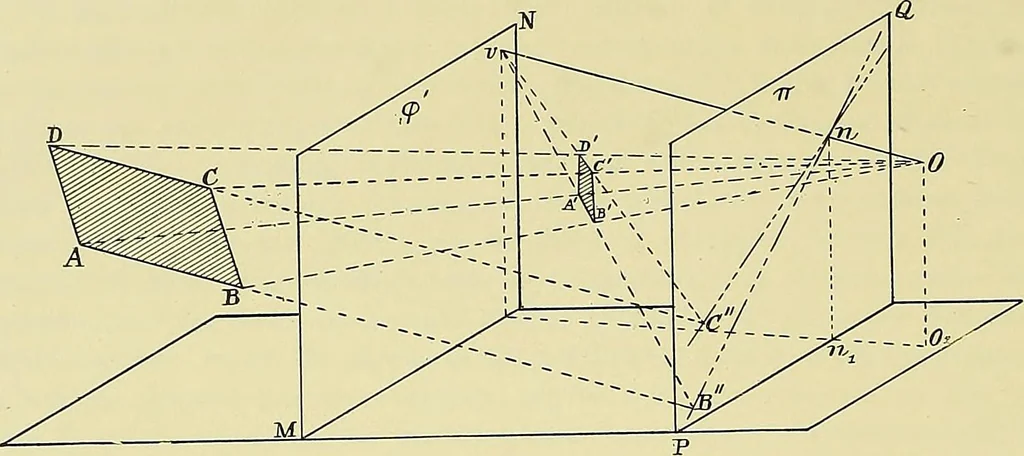

50 THEORETICAL AND PRACTICAL GRAPHICS. the centre of homology or perspective-centre. All points in the plane n are their own perspectives or, inother words, corresimid to themselves. Therefore B is one point of the projection or perspective ofthe line A B, being the intersection of A B with tt. The… … latter at infinity; therefore v, in the vanishing plane, 4>, would be the projection upon it of thepoint at infinity. Joining v with B and cutting v B by rays OA and OB gives A B as the relief-perspective of A B. The plane through 0 and A B cuts tt in B n, which is an axis of homology forAB and…
