Practical engineering drawing and third angle projection, for students in scientific, technical and manual training schools and for ... draughtsmen .. (1897)
Willson, Frederick Newton, 1855-1939 · Princeton, N.J., The author · leaf 64

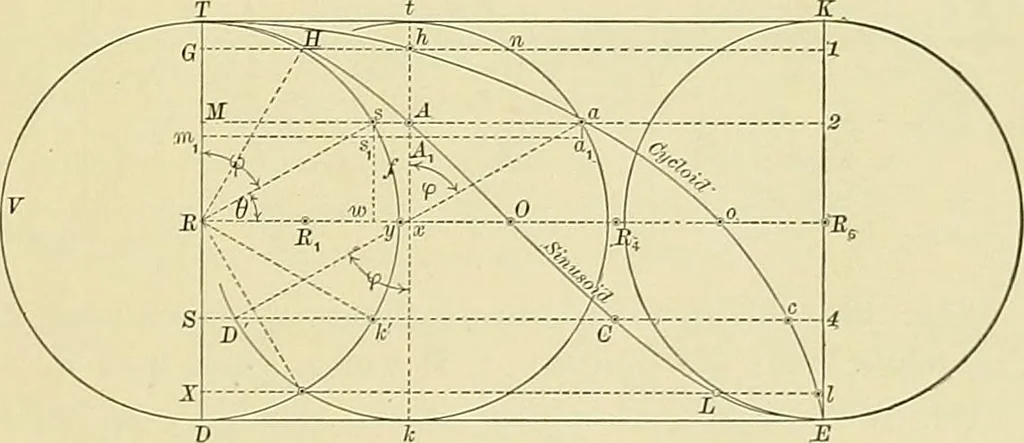

a between thesinusoid and T D and D E equal tothe rectangle R E, or one-half the rect-angle D E K T; or to -, ir r x 3 r = IT r ^, the area of the rolling circle. As T A C E is but half of the entire sinusoid it is evident that the total area below the curveis twice that of the generating circle.… … * Wood. Elements of Co-ordinate Geometry, p. 209. 58 THEORETICAL AND PRACTICAL GRAPHICS. passing through the then position of the tracing point, as a, the distance, A a, between the twocurves at any level, is merely the semi-chord of the rolhng circle at that level. But this, evidently,equals Ms,…
Mechanical drawing · Lettering
