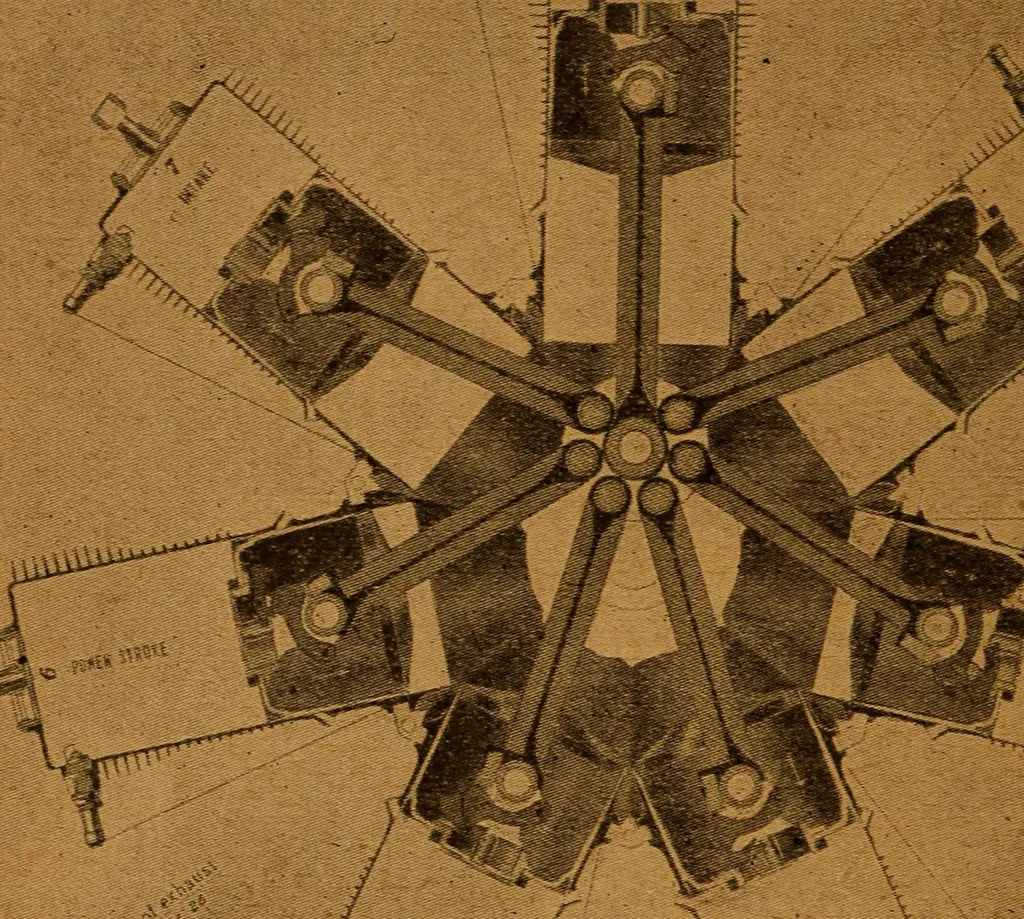

t of the solid bar, and are arranged inhelicoid or screw-like formation around the C3linder barrel.This adds to the strength of the cylinder and also aids in thecirculation of the air. The comparative thickness of the cyl-inder wall may be seen from Fig. 44. The stiffening effect ofthe radiating… … Fig. 45. Section Through Rotary Gyro Motor. GAS, OIL AND STEAM ENGINES 135 crank case also serves as a mixing chamber for the gasolineand air. By removing the bolts seen between each cylinder,the entire working mechanism can be laid bare for inspection.The exterior of the case carries the exhaust…
