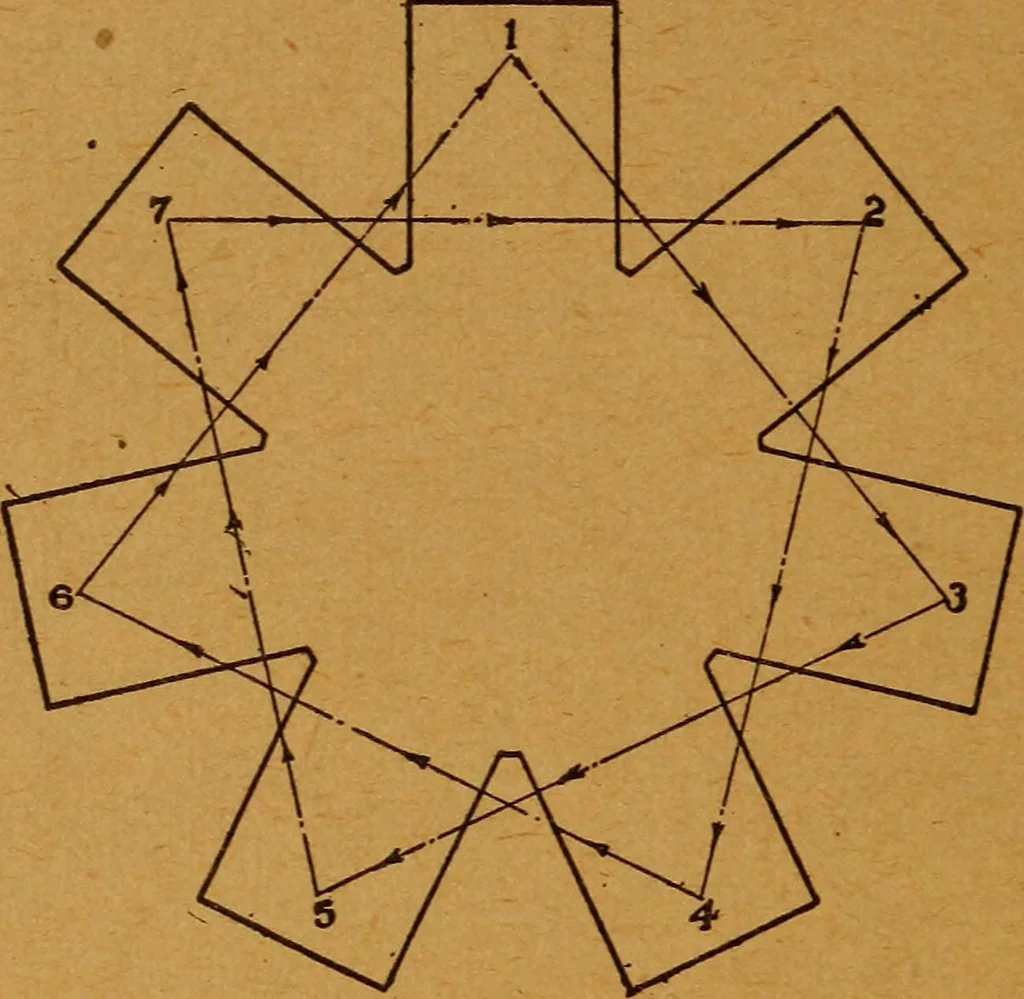

rs are all arranged in one plane which passes throughthe center of the crank throw. In the fourteen cylinder enginewhere the cylinders are in two rows, there are two crank throws,one for each row of cylinders. The seven cylinders are arranged radially, as will be seenin Fig. 50, each being spaced… … Fig. 51. Firing Diagram of Seven Cylinder Rotary Motor. On Startingat Cylinder No._ 1, and Following the Zig-Zag Line in the Directionof the Arrows, it Will be Seen that Ignition Occurs at Every otherCylinder at even Intervals Through Two Revolutions, Ending atCylinder No. 1. out of solid forged…
