Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 270

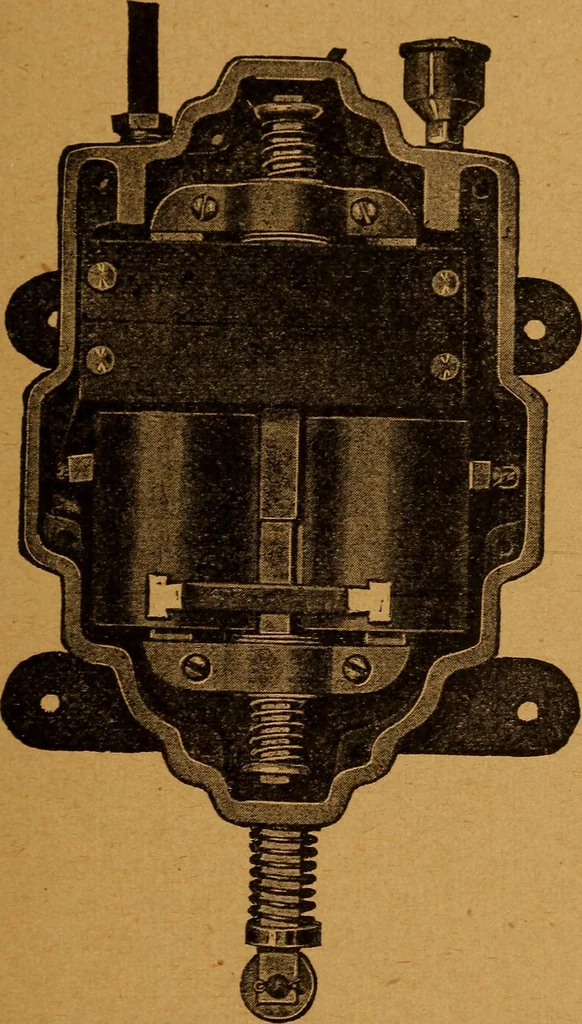

pes described in the precedingpages for its motion is reciprocating instead of being rotary, and GAS, OIL AND STEAM ENGINES 265 because all of the wire is stationary, the only movement beingthat of the iron core that passes through the center of thefields. The fact that the spark is of the same… … Fig. 113. Wico Igniter. High Tension Reciprocating Type. or primary windings, and has no parts that require adjustment.The current is generated by the reciprocating movement oftwo soft iron armatures shown as a bar across the bottom ofthe two coils, which move alternately into and out of…
Internal combustion engines · Traction-engines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
