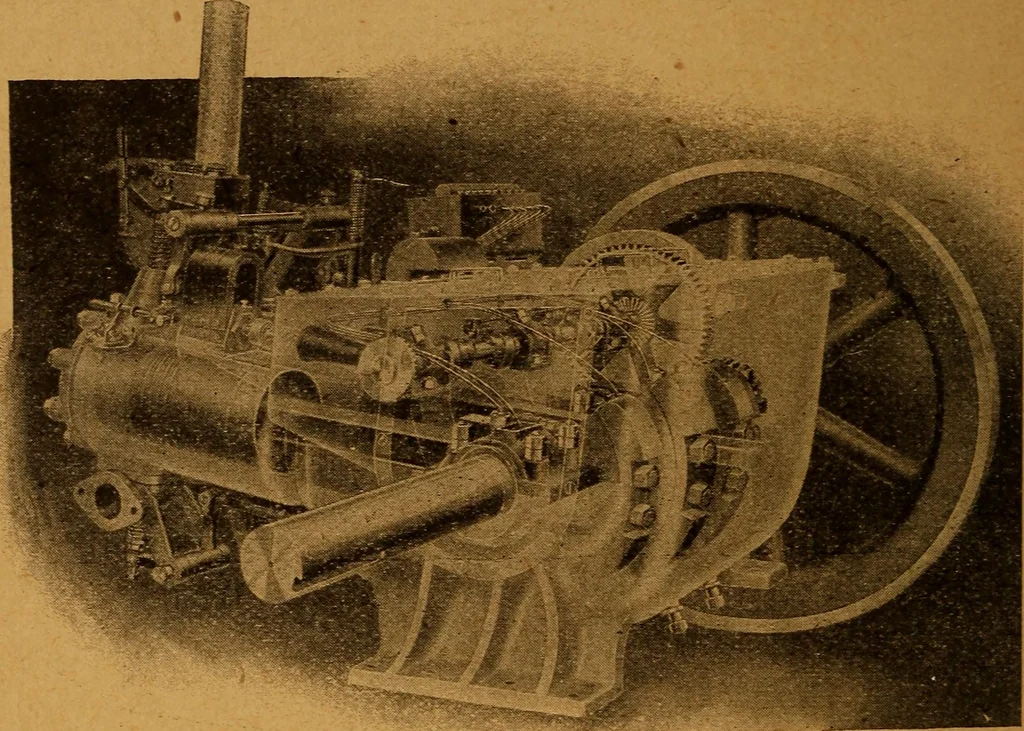

open directly into the combustion chamber withoutpockets or extensions to the chamber. A bell crank rocker arm acts on the valve stems which inturn is actuated through a push rod that extends from thecam-shaft in the crank chamber. The cam-shaft, rocker arms,valves, and half time gears are clearly… … Fig. 128. Phantom View of the Rumely Oil Pull Engine. fective in vaporizing the heavier fuels and has no springs norinternal mechanism to get out of order. The carburetor iscontrolled directly from the governor which regulates the air,water and kerosene required for the combustion, and has nomanual…
