Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 347

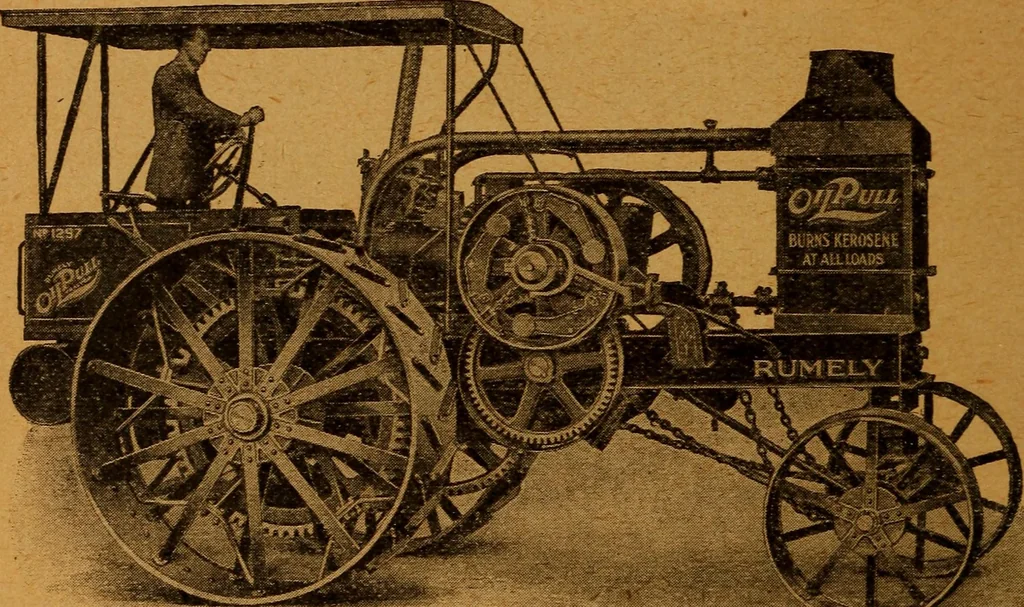

s securely in position.The design permits removal of binder caps for examination ofcrank shaft bearings without distributing the adjustment. Thecrank case is secured to tractor frame by well fitted bolts,thereby avoiding annoyance from loose bolts and nuts. The crank case is covered with a sheet… … Fig. 130. Rumely Oil Pull Tractor. or end, which permits of easy access to any working parts inthe crank case. To further facilitate the accessibility to working parts in thecrank case, a secondary cover is provided which can be removedin a couple of minutes. This opening is large enough to…
Internal combustion engines · Traction-engines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
