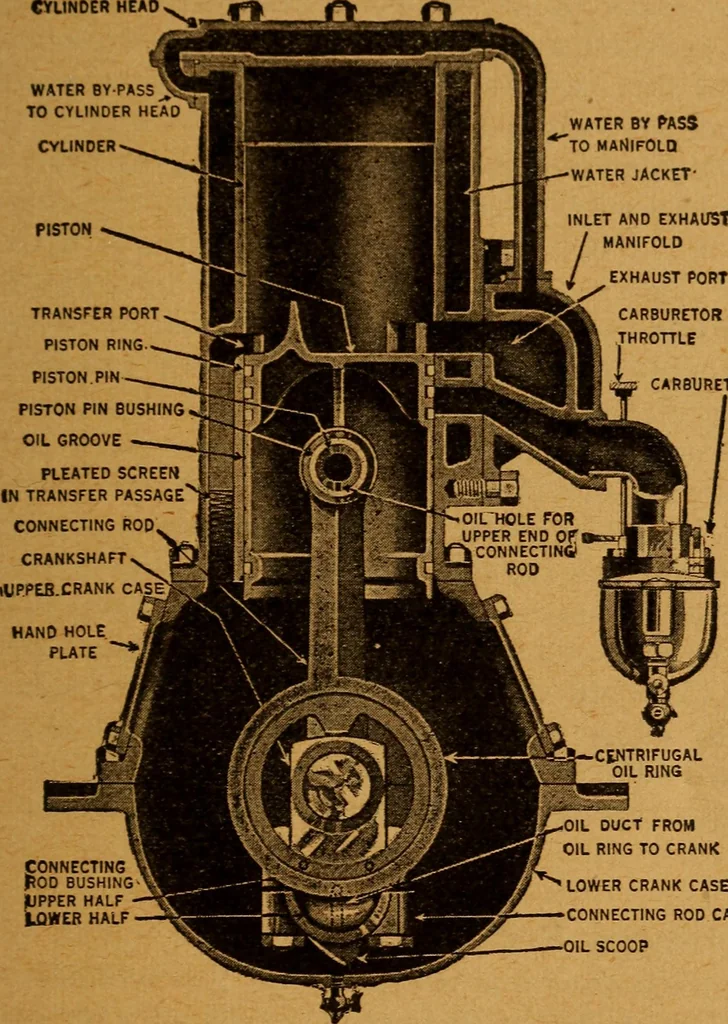

roke, weshould have continuous rotation in a right hand direction. Byshifting the sequence of the spark so that it occurred with thecrank on the left we would cause the engine to stop and re-verse to left handed rotation. This is exactly the method usedin reversing two stroke motors in practice,… … CONNECTING|*0D BUSHING(UPPER HALF - Slower half ■ ■OIL DUCT FROMOIL RING TO CRANK LOWER CRANK CASECONNECTING ROD CAP■OIL SCOOP Fig. F-9. Cross Section of Fairbanks-Morse Three Port—Two StrokeCycle Engine, with Parts Named. ignition being accomplished by advancing or retarding themechanism that…
