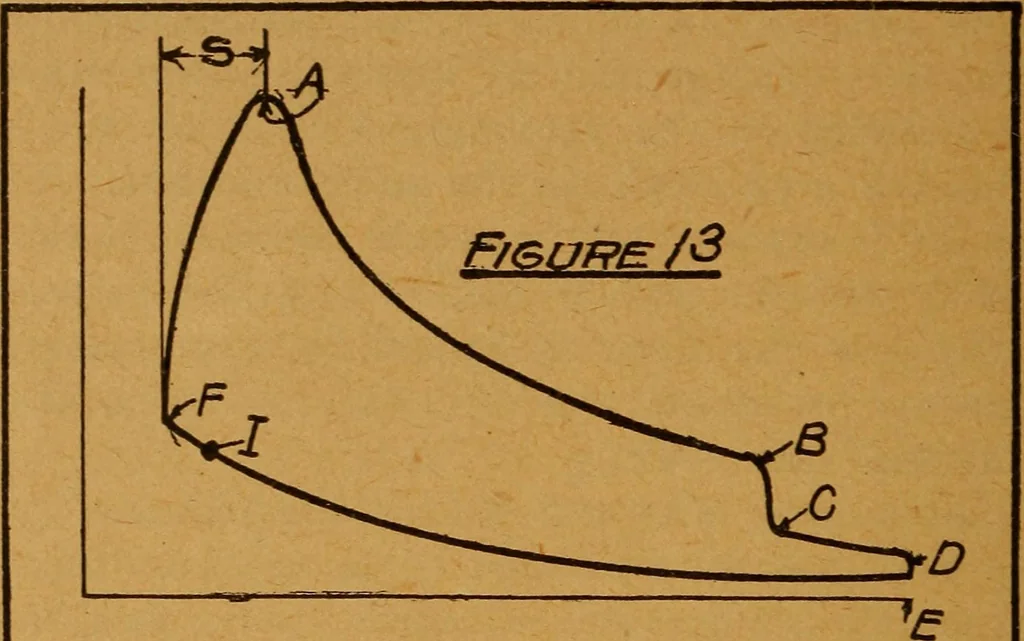

ing mixture with the same point of ignition (X). 78 GAS, OIL AND STEAM ENGINES The compression curves of both diagrams are coincident asfar as C, the ideal diagram shooting straight up at this pointand the weak mixture diagram staying at the same level. Whenunder the influence of the mixture (X)… … c\ -—e- 4, ♦ \ Fvsu&a /4 \ L/ V \ ^ // Figs. 13-14. The First Diagram (13) Shows a Two Port Two StrokeDiagram, the Second Shows a Typical Diesel Card. will be noticed that the maximum pressure is far below that ofthe ideal diagram. This low maximum is due principally tothe reduced compression…
