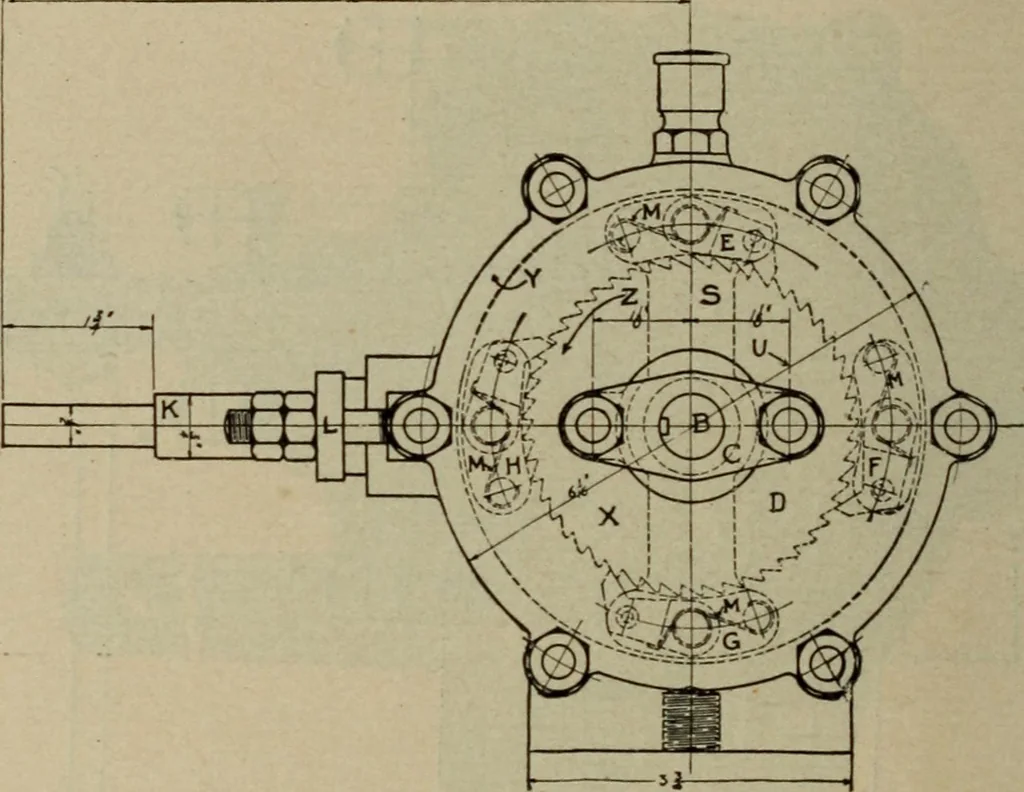

ft;A, arm; S, pawl lever; E and G are pawls attached to thepawl lever, S; H and F are pawls which are pivoted onthe cover plate; M, springs; D, ratchet wheel; / and J,miter gear wheels; K, shaft which connects to lubricator. 108 OPERATION OF THE TRANSFORMER OPERATION OF THE TRANSFORMER 315. When in… … [Fig. 30.—Transformer Ratchet. are held in mesh with the ratchet D by the spring M. Theratchet D is keyed on the miter gear / by the key T andthe whole, as one piece, is mounted loosely on the shaft B.Then the miter gear / meshes with the miter gear 7, whichis keyed on the shaft K, which rotates in…
