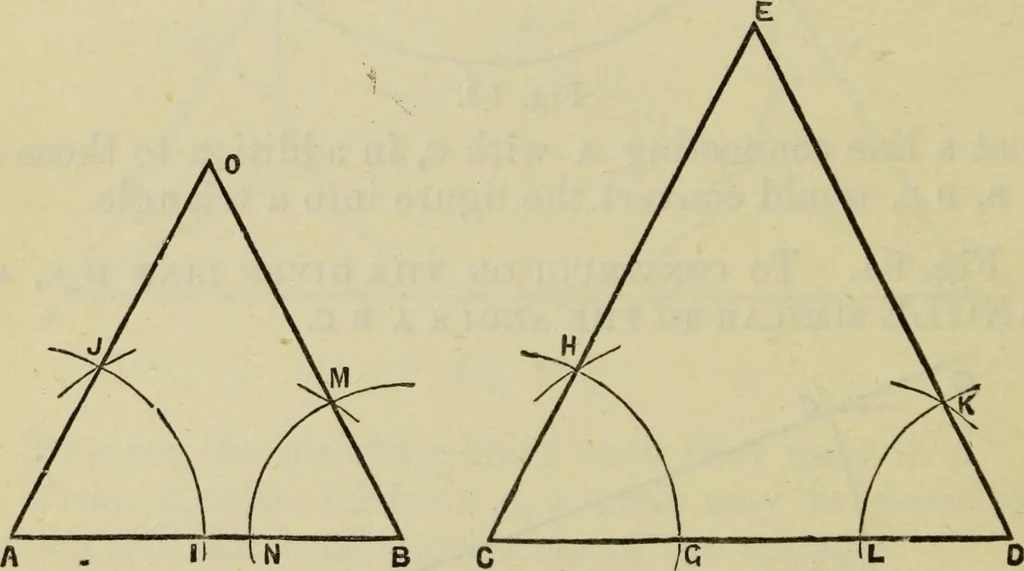

Fig. 94. 290 ELEMENTARY DRAWING FOR HOUSE PAINTERS. From B, with any radius, describe an arc cutting thesides of the angle in c and d. From E, with the same radius, describe an arc cuttingE 1) in F. Measure the length from point c to d.Mark off the same on the arc from f, viz., topoint G. Draw a… … Fig. 95. At B construct an angle similar to the angle k d l,viz., M B N. Produce the lines a j and b m until they meet in o,which will complete the triangle required. * The terms similar and equal, when applied in geometrical drawing,signify, the former, that the figure is of the same shape as…
