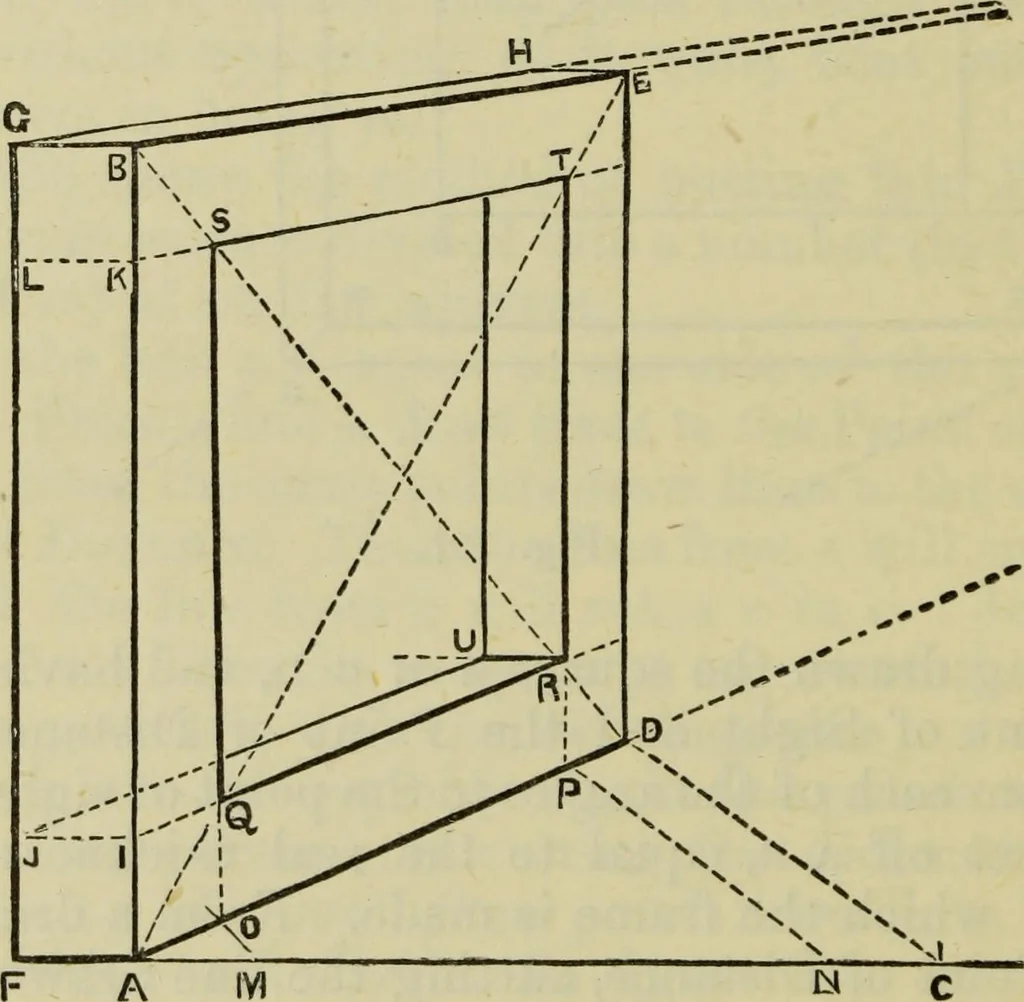

es parallel to d c and d a, which will completethe figure. Fig. 138. In this figure we proceed to show how theobject is to be rendered in Perspective, when placed sothat the edge, instead of the square surface, is parallel tothe plane of the picture; the frame being placed belowthe level of the eye… … Fig. 138. A B (or either of the sides of the square), and from cdraw a line to the Point of Distance, cutting that drawnfrom A to the Point of Sight in d. At d draw d e, whichwill complete the perspective appearance of the planesurface of the square, placed at right angles to thepicture. Now from a…
