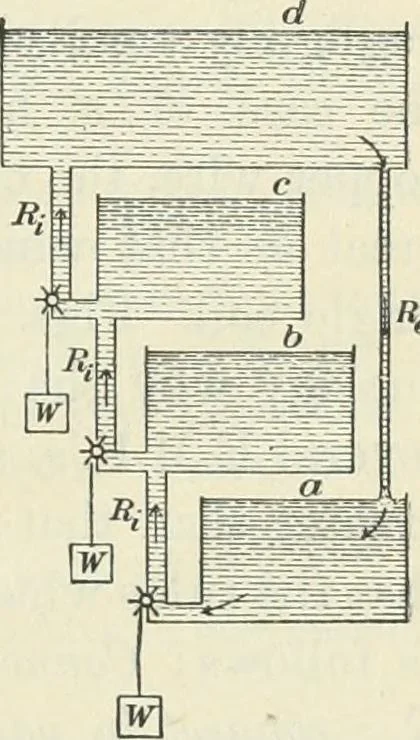

the circuithas been increased in the same ratio as thetotal E.M.F. But if the external resist-ance is large, the current produced by thecombination will be very much greaterthan that produced by a single cell. Justhow much greater can always be deter-mined by applying Ohms law ; for if there are »i… … Fig. 288. Water anal-ogy of cells in series / = uE 280 ELECTRICITY IN MOTIOK If the n cells are connected in parallel, that is, if all thecoppers are connected together and all the zincs, as in Fig. 289,the E.iNI.F. of the combination is only the E.M.F. of a singlecell, while the internal…
