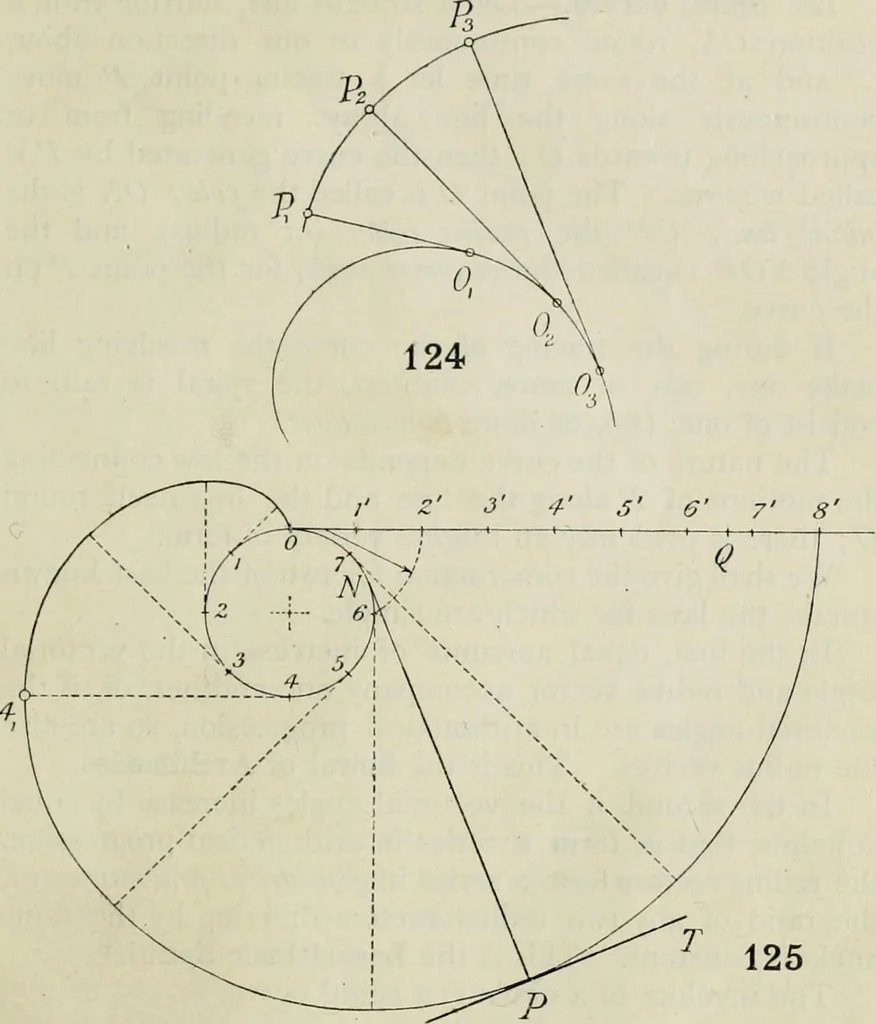

reof curvature for P. 125. Problem.—To draw an involute of a given circle,and to find the tangent, normal, and centre of curvaturefor any point P on the curve. Divide the circumference into a number of equal parts,say eight. At the division o draw a tangent, and by theaid of Prob. 113 set off 02… … Draw tangents to the circle at the points, and alongeach tangent set off the distance of the corresponding pointon o8 from o. For example, make 441 = 04. The curve may extend indefinitely outwards. Let P be any point on the involute. From P draw atangent PN to the circle, and find N its point of…
