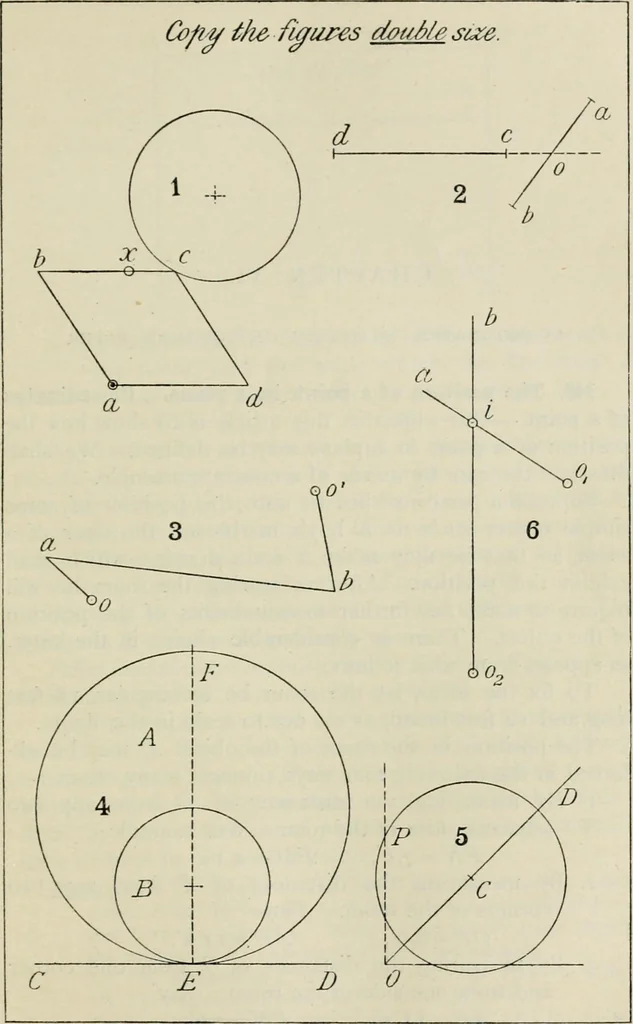

hile P revolves once round the movingpoint C; draw the path of P. (1895) *0. Two bars, o^a, o2b, are pivoted at ol and o2 respectively. Ati they pass through a saddle which can travel along o^a at■fths the speed at which it can move along o.2b. Trace thelocus of i. What is this curve ? (iSSS) 7.… … CHAPTER VI CO-ORDINATES PLOTTING ON SQUARED PAPER 143. The position of a point in a plane. Co-ordinatesof a point.—Our object in this article is to show how theposition of a point in a plane may be defined. We shallillustrate the case by means of a concrete example. Suppose a person wishes to note…
