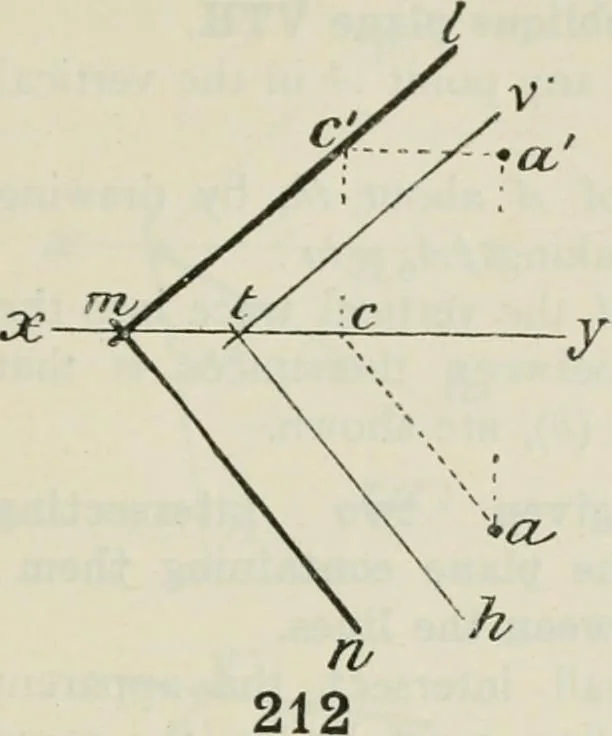

plan of the path. Next, to find Av the rabatment of A into the verticalplane, about tv. The construction is similar to that justdescribed; an is the elevation, and axri the rabatmentinto the vertical plane, of a line AN lying in the plane atright angles to the vertical trace; nA1 is the rabatment…
