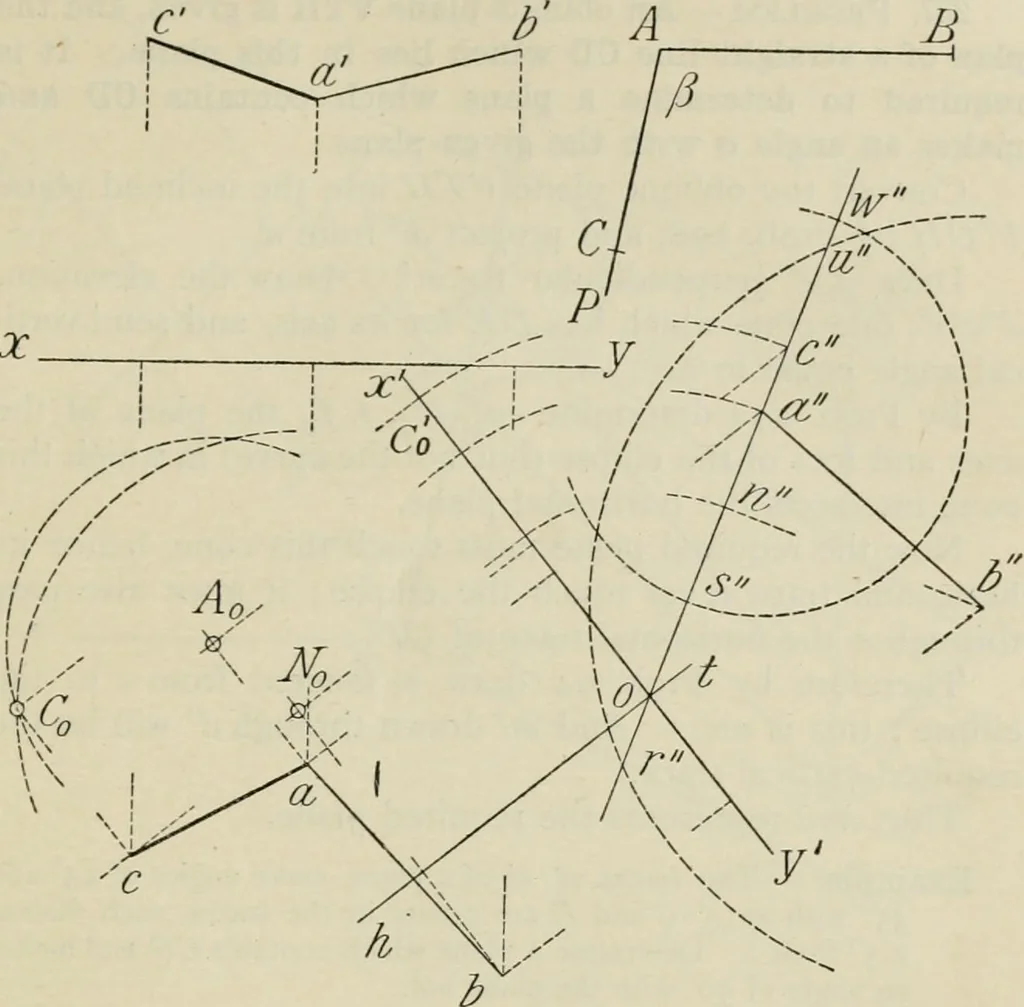

iven plane and these two circles into theground as shown ; the rabatments of the circles intersect inC0 (there are two such points). From C0 obtain C0 and c; from C0 and c obtain theplan c, then ac is the plane of one line fulfilling the requiredconditions. The elevation of AC on xy can be drawn… … Examples.—1. A line AB is parallel to the vertical plane andinclined at 6o° to the ground. An inclined plane passes throughA and makes 700 with the ground. Determine the projectionsof a line AC 2 long which lies in the given plane and makes65° with AB. Would the solution be possible if 450 were…
