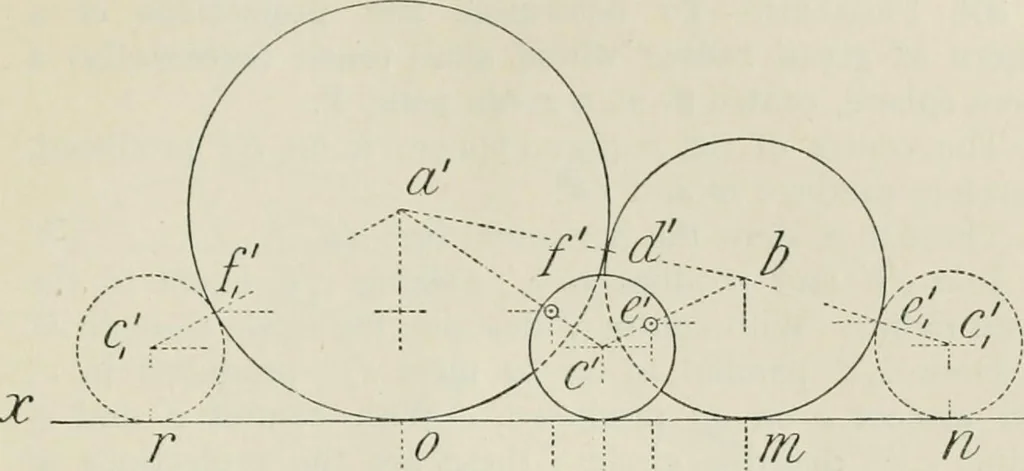

An illustration from Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus, 1899, leaf 384
ssume that the spheres with centres A and B areplaced so that AB is parallel to the vertical plane. Describe circles, centres a and b, to touch xy andeach other, their radii being those of the spheres A and B.These circles are the elevations of two of the spheres.Draw their plans with ab parallel… … M^7
