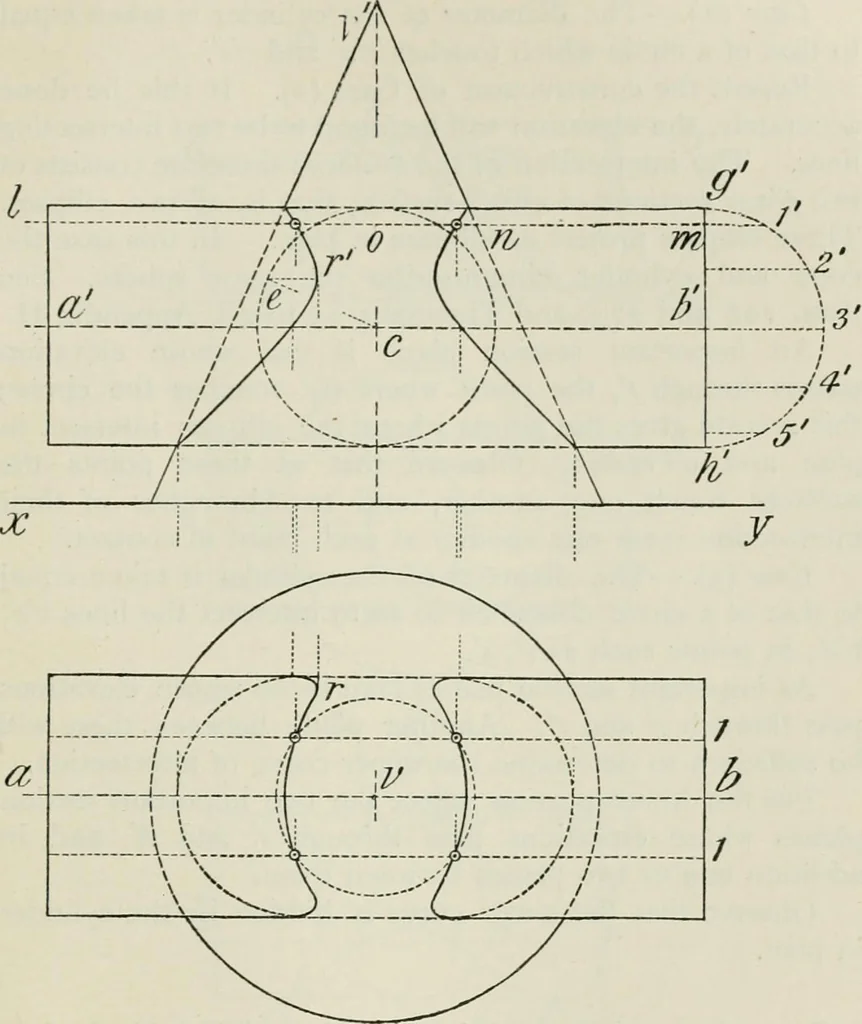

ections intersect arepoints on the required plan, their elevations being found byprojectors as shown. Repeat this construction for the planes through^, i, 2. . . //, and draw a curve through the points thus found. The planes through 4, 5, H give rise to points which inplan are hidden by the… … Examples on Problem 317. 1. Determine the interpenetration of two cylinders, diameters lY and 2 ; axes intersecting at right angles, and parallel to verticalplane ; smaller cylinder horizontal. 2. Work Ex. 1 (a) when the axis of the smaller cylinder is hori- zontal, but makes 300 with the vertical…
