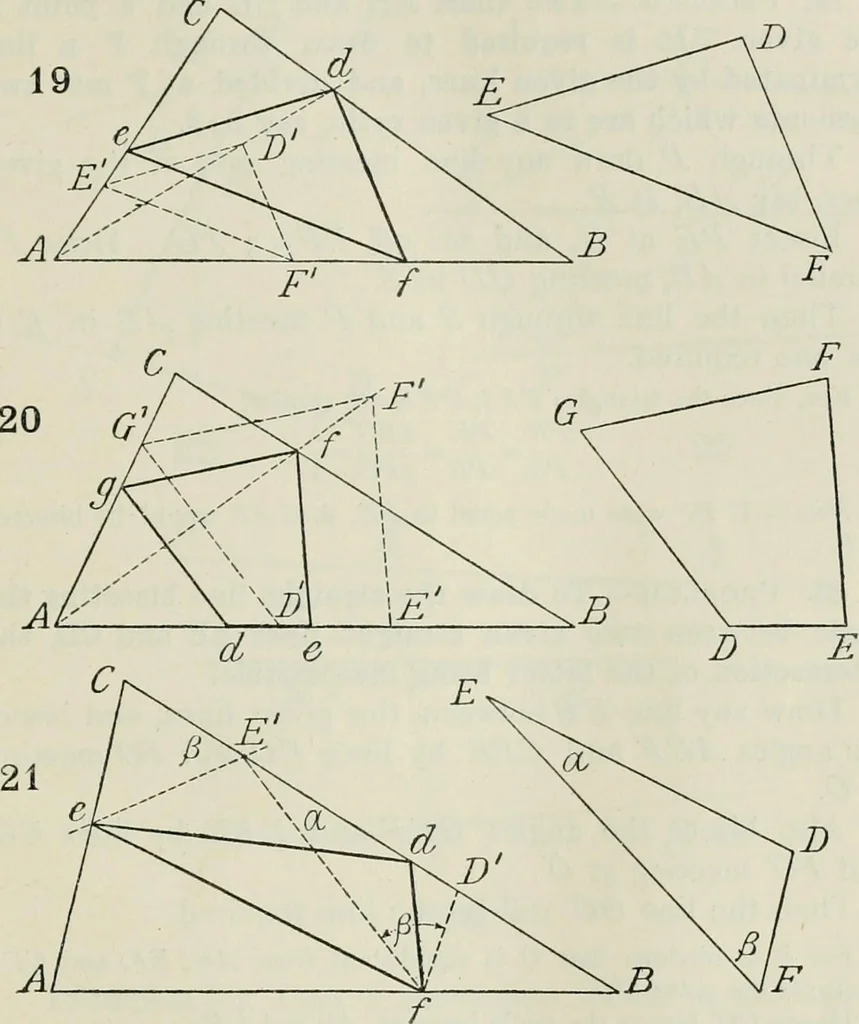

ions of the two figures being in the ratio AP : AQ.• The figure shows two positions fDE, fde of such a triangle. Asone vertex moves from D to d, the other moves along Ee, inclinedat /3 to Dd. See also Ex. 26, p. 25. Note 2.—With modified data some of the points would be situatedin the sides AB, BC,… … Examples.—1. Draw a BC=3.S, CA = 2.$ triangle ABC, making AB = 4,In ABC inscribe an equilateral triangle with one side inclined at 450 to AB.In the triangle of Ex. 1 inscribe a square with one side in AB.In ABC inscribe an equilateral triangle with one vertex bisecting AB.In ABC of Ex. 1 inscribe a…
