Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus (1899)

Harrison, Joseph, Baxandall, George Albert · London Macmillan · leaf 484

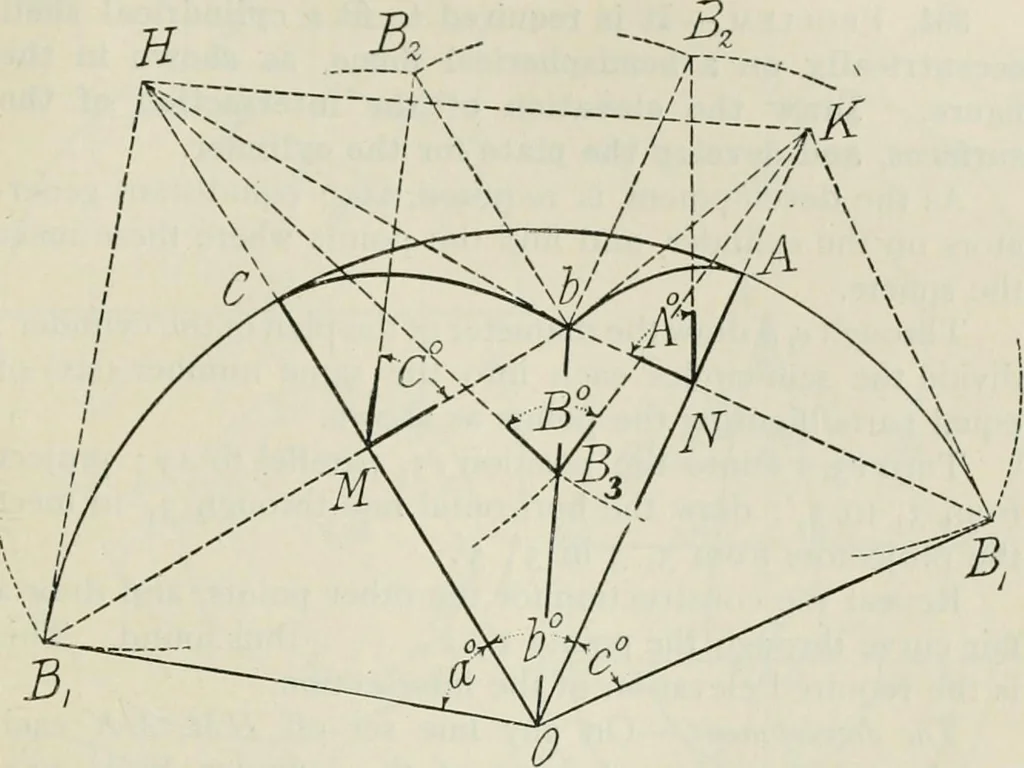

An illustration from Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus, 1899, leaf 484
endicular to OC, intersect-ing the latter in M. Set off the angle bMB2 equal to C\and make MB2 = MBV Through B0 draw Bb perpen-dicular to BM produced. Then b is the plan of B.Through b draw 1>NB1 perpendicular to OA. We thusfind the side c°, and the angles A and B are readilydetermined by… … Case III.—Let a, b , A be the given sides and angle. First draw B\OC, CO A the development of the twogiven sides or faces. Next set out the elliptic arc Ab, of indefinite extent,which shall be the projection of the arc ABX when thelatter is turned about OA until the face OAB is inclinedat the given…

Geometry, Descriptive -- Problems, exercises, etc · Geometry, Plane -- Problems, exercises, etc · Graphic methods

Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
