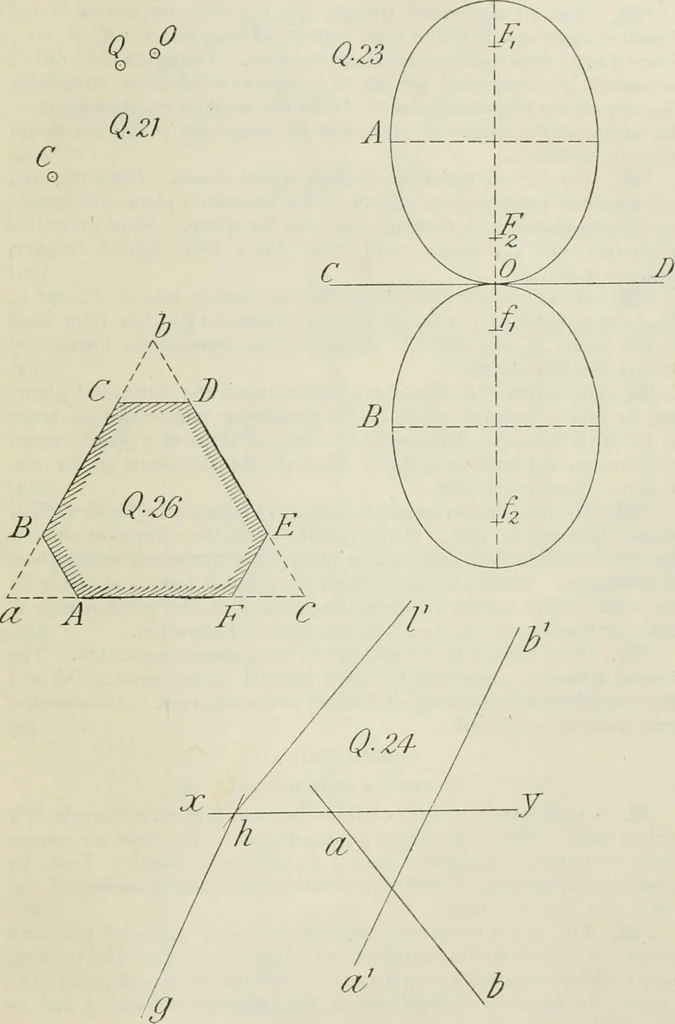

and for ordinates the actual heights of the pin corre-sponding, above CD. The position should be shown for, at least,every TVth of a complete revolution. (22) Solid Geometry. *24. a!>, db are the projections of a line AB ; Ih, hgzxe. the tracesof a plane. Draw the projections of a line in the… … 540 ADVANCED STAGE appen. 25. A cube, inscribed in a sphere of i^5 inches radius, has twoadjacent faces inclined at 300 and 700 respectively, to the horizontalplane. Draw the solids in plan and elevation. (24) *26. Draw an equilateral triangle abc (see diagram, which is notdrawn to scale) of 4.2…
