Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus (1899)

Harrison, Joseph, Baxandall, George Albert · London Macmillan · leaf 82

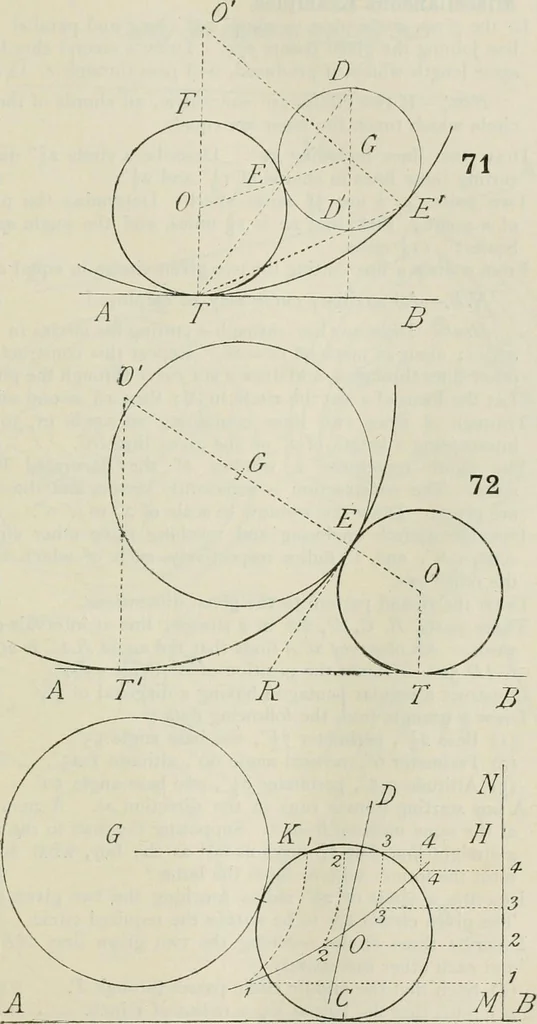

An illustration from Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus, 1899, leaf 82
as centre, to touch AB, will also touch the circle, centre G. Examples.—Take two points A and B 2 apart. Draw a lineCD distant 1 from A and i| from B. On CD take P, i|from A. Describe a circle which shall pass through— 1. A and B and touch CD. 2. A, touch CD, and have its centre on AB. 3. A and B,… … 73 68 PRACTICAL PLANE GEOMETRY chap. 74. Miscellaneous Examples. *1. In the given circle place a chord 1.8 long and parallel to theline joining the given points /, q. Draw a second chord of thesame length which, if produced, will pass through/. (1884) Hint.—If two circles are concentric, all chords…

Geometry, Descriptive -- Problems, exercises, etc · Geometry, Plane -- Problems, exercises, etc · Graphic methods

Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
