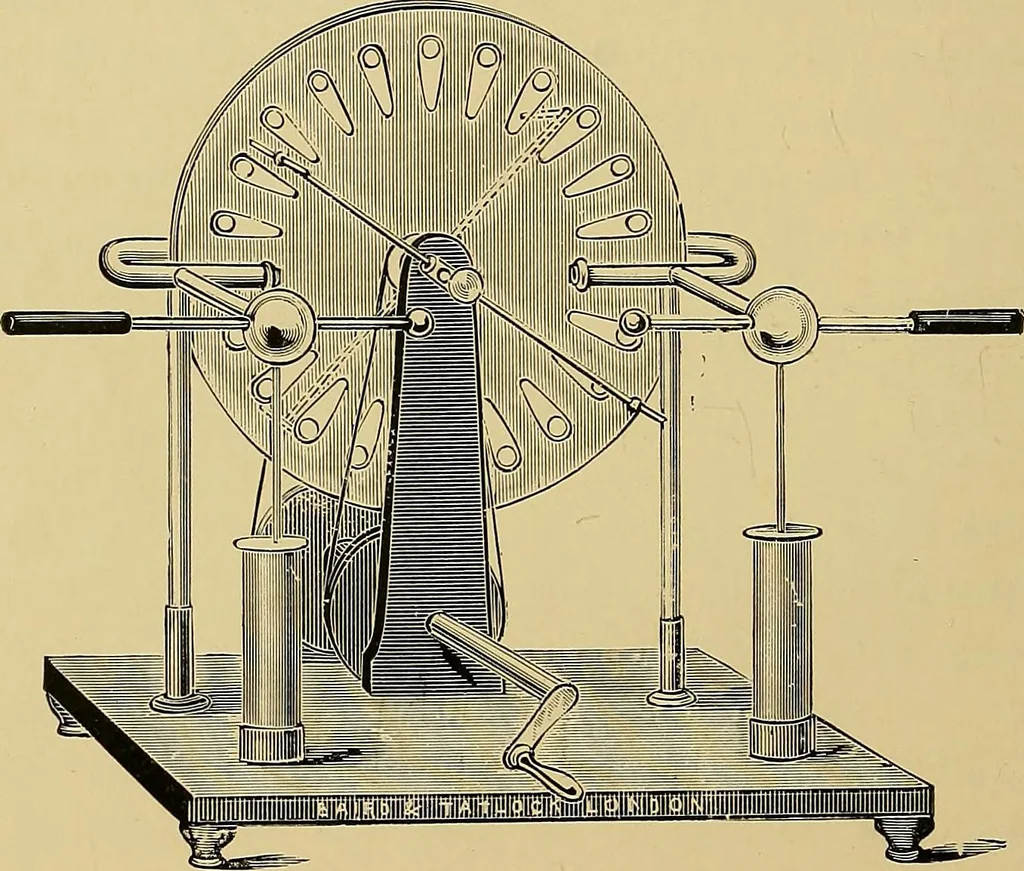

r ends fine wire brushes, whichjust touch the passing tinfoil sectors. The collectors 4° Practical Radiography consist of two forks provided with combs directed towardsthe rotating discs. They are supported on suitableinsulating pillars, and connected to the dischargingelectrodes. For certain… … Fig. 13. As the theory of the action of these machines is rathercomplicated, we will not attempt to record it here,particularly as the management of the machines does notpresuppose such knowledge. In the modification of the Wimshurst machine knownas the Pidgeon type, the sectors are embedded…
