The practical telephone handbook and guide to the telephonic exchange (1906)
Poole, Joseph · New York, Macmillan Co. · leaf 125

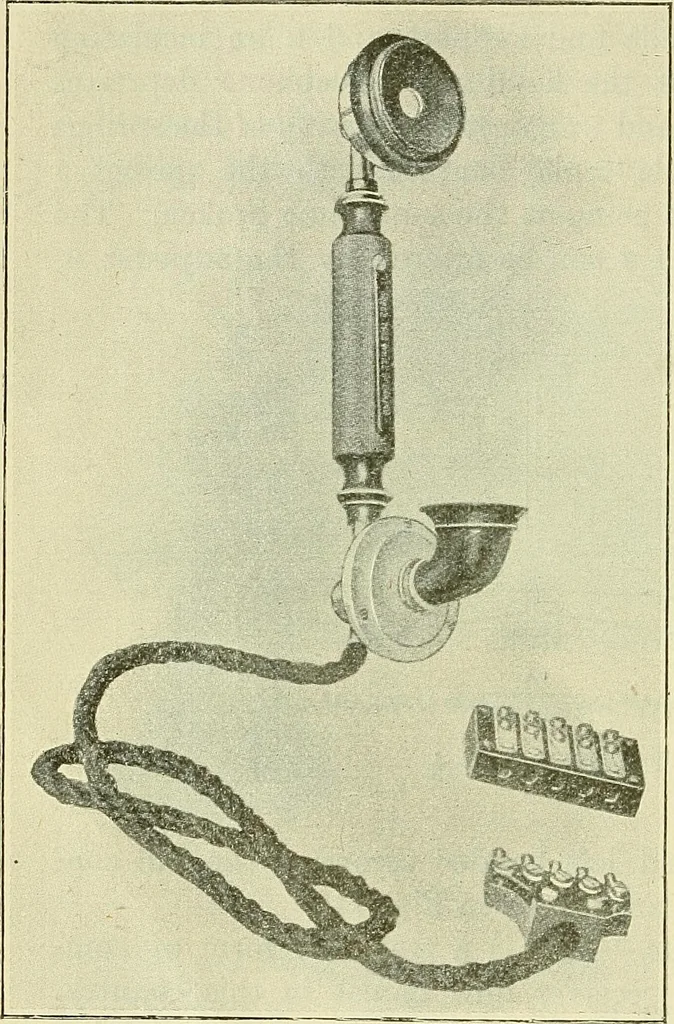

projectinto holes drilled inthe ebonite block, inwhich the plugs areinserted. Contact isthus effected betweenplugs and springs. The 5-point plugs and jacks are onlyrequired when a connection has to be made to the centre ofthe receiver coils. In ordinary circumstances 4-point plugsand jacks, as… … Fig. 96 SUB-STATION APPARATUS 103 to the centre of a brass spring a a, one end of which bearson the piece b, and the other end on one of the brass piecesc or d, according to the direction in which the handle is
Telephone
