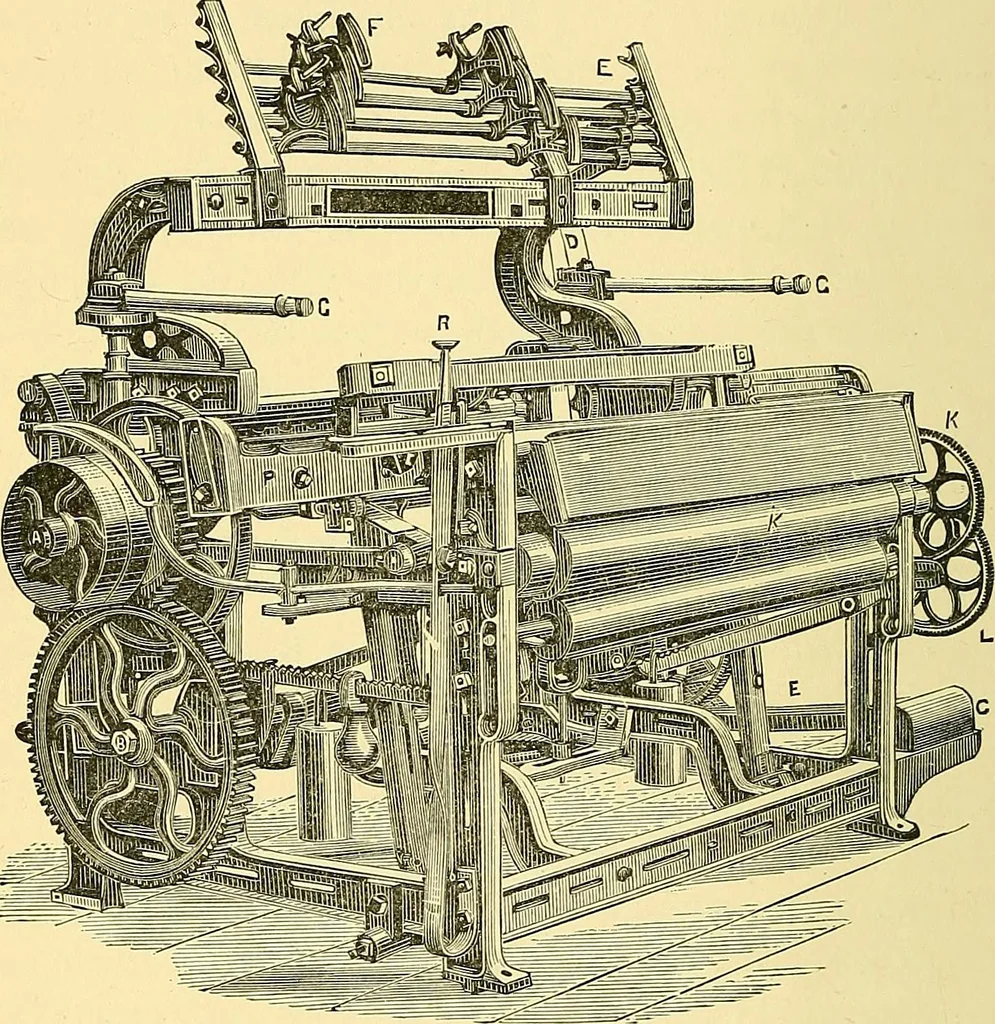

e perspective view of theloom here given. Fig. ii, A and B. The shaft A is calledvariously the main crank or driving shaft, and from this 72 WEAVING AND DESIGNING shaft motion is imparted, directly or indirectly, to all theother parts of the loom. The shaft is provided with twocranks for giving… … Fig. II. closing of the shed, also the picking tappets. The revo-lutions of the tappet shaft must therefore be regulated inrelation to the crank shaft according to the arrangement ofthe picking tappets, and the shedding tappets must revolveat a speed proportionate to the number of picks in a…
