A practical treatise on weaving and designing of textile fabrics : with chapters on the principles of construction of the loom, calculations, and colour (1885)

Ashenhurst, Thos. R. (Thomas R.) · Huddersfield, [Eng.] : J. Broadbent · leaf 141

An illustration from A practical treatise on weaving and designing of textile fabrics : with chapters on the principles of construction of the loom, calculations, and colour, 1885, leaf 141

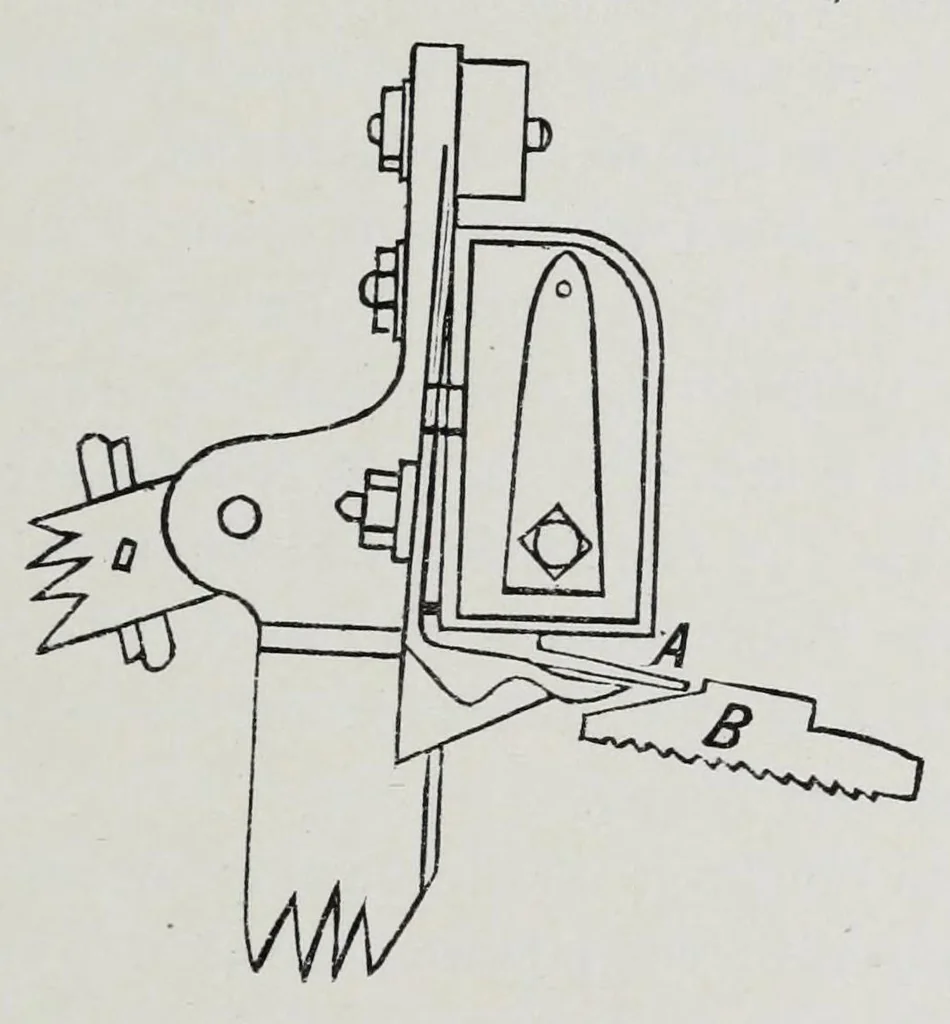

result must be most disastrous to the warp. What is commonly known as the stop rod is designed to meet this contingency. In the back of the box a spring is affixed which acts upon a lever a, Fig. 35. Attached to the front of the loom frame is a frog, b. The lever is so arranged that when the… … 35- lever remains down and strikes the shoulder of the frog ; the force of the concussion knocking off the loom, by throwing the belt on the loose pulley. The action of this protector must be in a high degree injurious to the loom if not properly arranged, for the loom is brought to a sudden stop…
