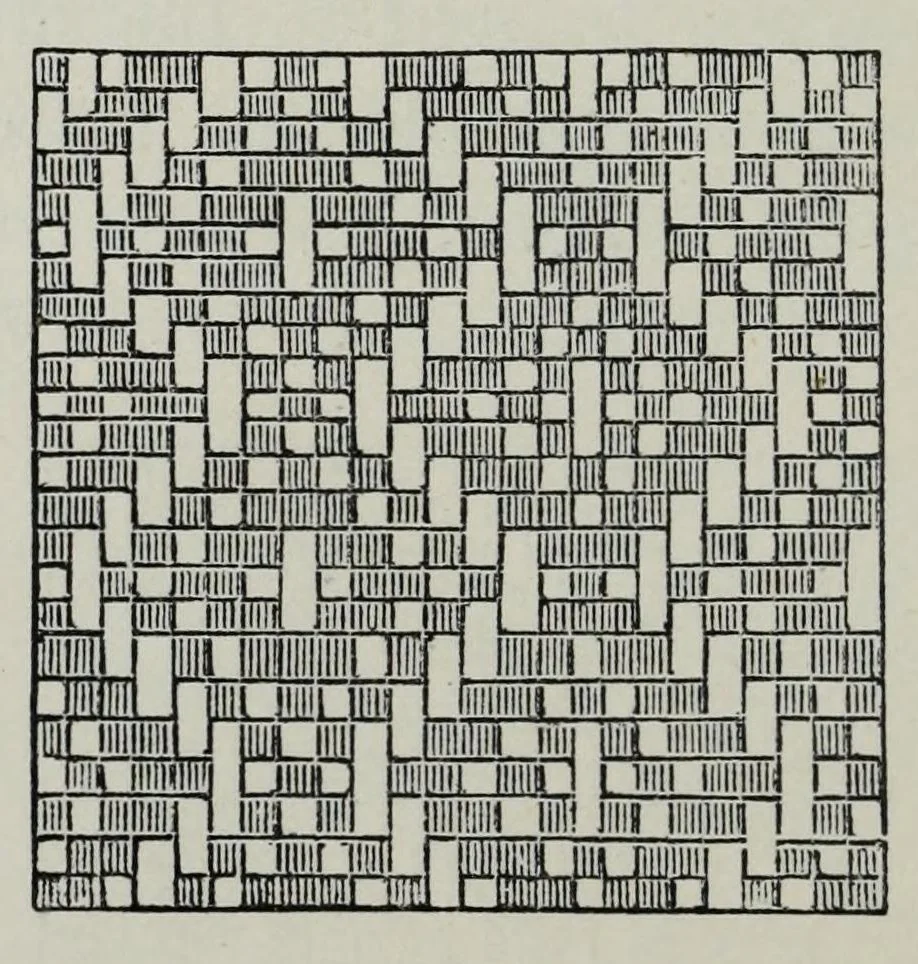

122 DRAUGHTS A^D TREADING. arranged, no matter what that order may be, then go over them again, but in exactly the opposite way), and do not reverse the draught, we have the pattern shown at fig. 27. By reversing both the draught and treading Fig. 27. they combine and form a diamond, as shown at… … will be observed that it takes ten treads to complete the pattern, beginning, say, at one, and going straight over them till we come to six, then beginning at five and going back to two — this will make ten treads in all. As the
