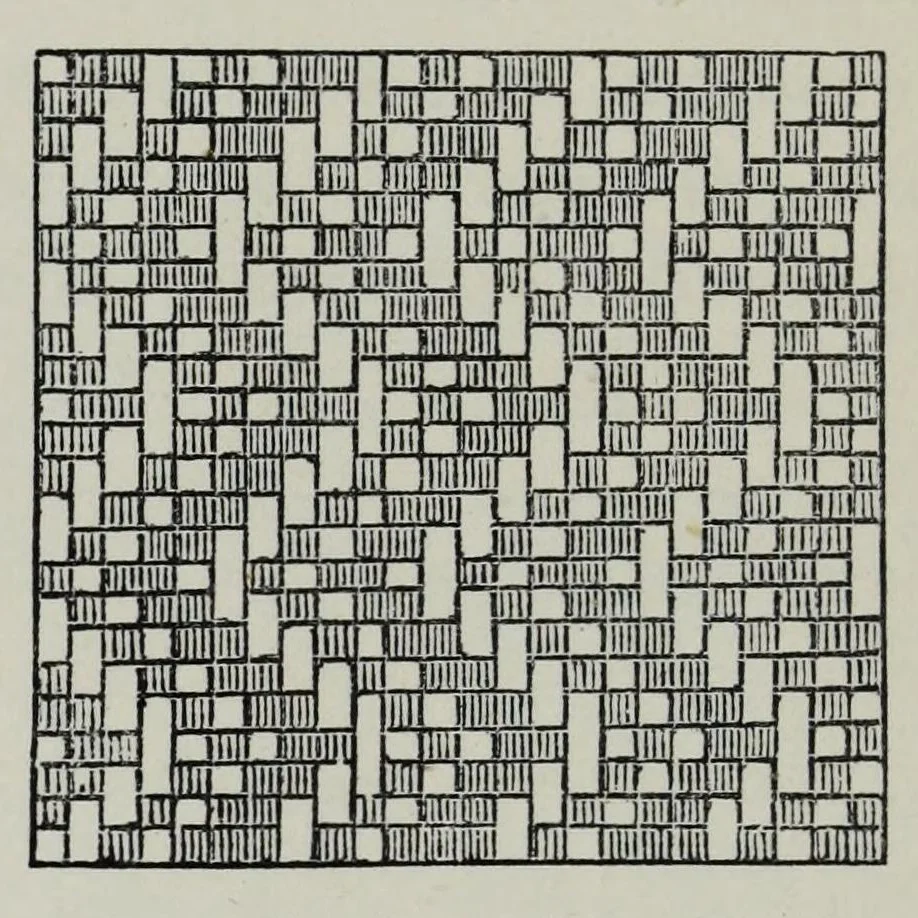

122 DRAUGHTS A^D TREADING. arranged, no matter what that order may be, then go over them again, but in exactly the opposite way), and do not reverse the draught, we have the pattern shown at fig. 27. By reversing both the draught and treading Fig. 27. … they combine and form a diamond, as shown at fig. 28. This is what is called diaper. This is a six-leaf, and it Fig. 28. will be observed that it takes ten treads to complete the pattern, beginning, say, at one, and going straight over them till we come to six, then beginning at five and going back…
