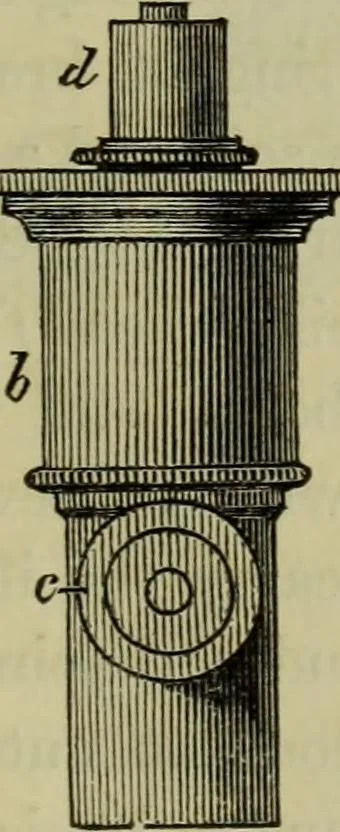

ondenser;and although it is applied in different ways to the microscopesof our three eminent makers, it, nevertheless, consists of threeessential parts; viz. an achromatic combination, an adjustmentof focus for the same, and a means of making the axes of theobject-glass and of the condenser… … e m Fig. 51. it consists of two tubes,sliding one within the other,to the outer one b, is at-tached a flat plate «, whichslides underneath the stage,and is adjusted for distanceby the screw f; at c is seena milled head, which is con-nected to a pinion, and bymeans of a rack attached,the inner tube,…
