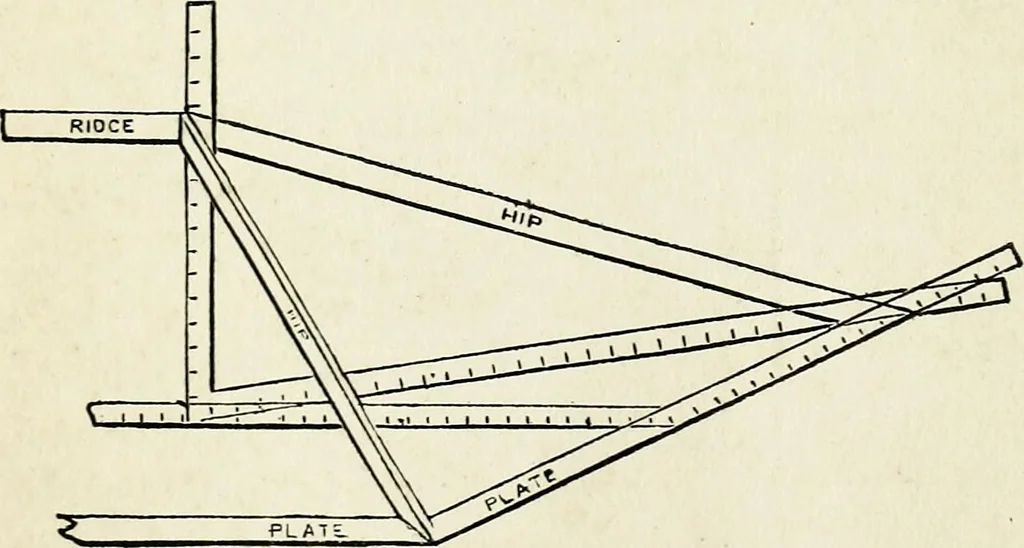

th the square laidon. To get the bevel of collar joist take the runon the blade 11 inches, and the rise on the tongueSts inches. The blade gives the cut. Supposingthe ends of the building have to be hipped in, toget the length and bevels of the hips, etc., pro-ceed as follows: The run of a hip… … Fig. 69 rise 8t? inches on the tongue. This gives us theproper length of hip, and these figures the ridge u6 PRACTICAL USES OF and plate cuts. For the side bevel, to get theridge-pole take the length of the hip on theblade and the run of same on the tongue; theblade gives the cut. Now as to the…
