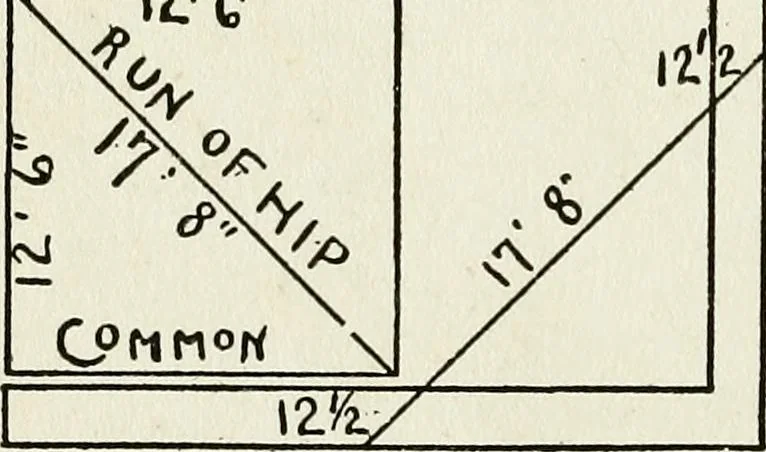

4, or, 16 feet 6 inches is the length of rafter. Fig. 106. If the Fig. 105 *1 run of common raf-ter is 12%, the run ofthe hip will be diag-onal of I2j4, which is17-fV, as is plainly il-lustrated.Fig. 106 Fig- 107. As the rise is 10^ and run 1715, the length will be 20 feet 2 inches. Fig. 108. When…
