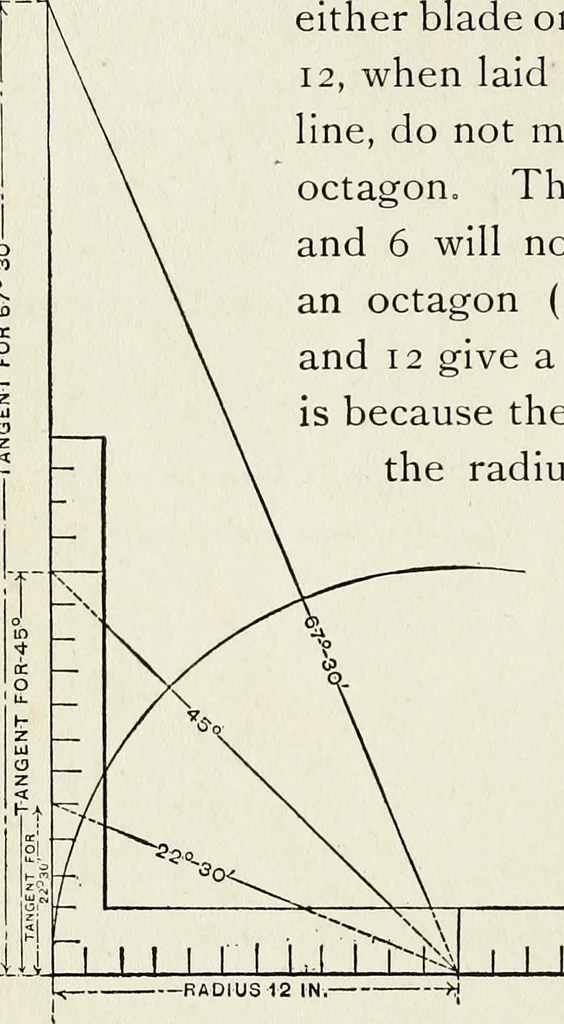

i6o PRACTICAL USES OF that if 12 and 12 on the square, when laid downon a line, make an angle of 45° on the lines ofeither blade or tongue, why 6 and12, when laid down on the sameline, do not make a miter for anoctagon. The reason why 12and 6 will not give the cut foran octagon (200 30), when 12and… … Fig. 119 steel square for any acute angle: Take anylength on the blade as radius, then the lengthon the tongue will equal the tangent of the re-quired angle. The accompanying diagram, Fig.119, illustrates the principle. A few examples furnished me by Mr. A. W. THE STEEL SQUARE 161 Woods, and which…
