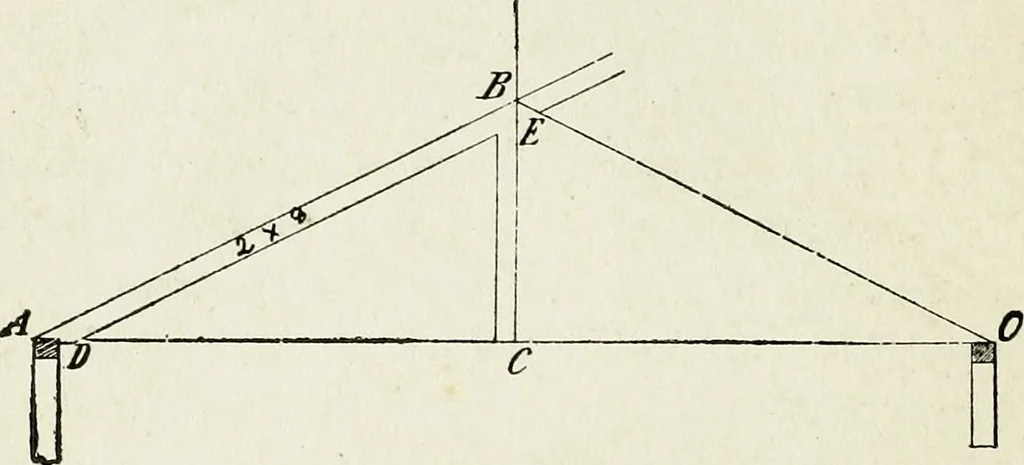

had in theanswering of questions of this kind through thecolumns of different building journals. This isno doubt owing to some constitutional peculiar-ities of both the person who makes the inquiryand the person who attempts to answer it.This is one of the main reasons why I haveadmitted into this… … Fig. 137 Let us take the diagrams shown at Fig. 137,which shows a portion of a roof having a quar-ter pitch. CEB showing the height, and AB thelength and inclination of rafter. D shows thefoot of the rafter on the plate, cut flat footand the line EC the plumb cut. This is quiteplain. The building…
