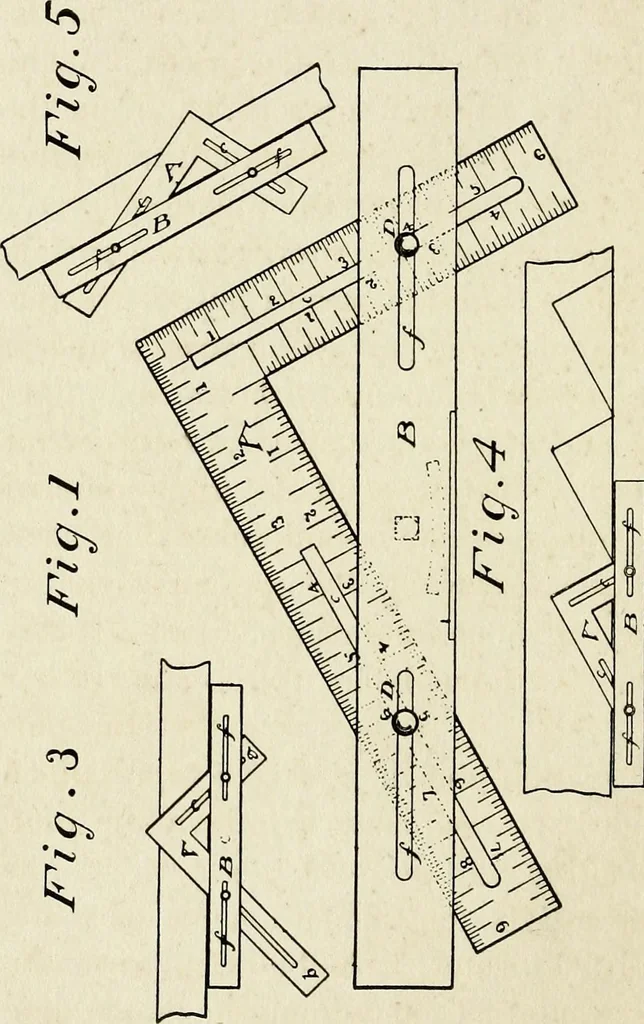

plication ofthe square for the solving of roof and otherproblems. The illustration shown at Fig. 1 represents asquare and its attachments in elevation, of arecent invention, and Fig. 2 gives a view of itsedge. A is a carpenters square made of metalin the ordinary form with the outer edges… … (AlCk St k •i - =_* = r,E * = c^ = el I - 5 t= ? Hi erf< INTRODUCTION 17 of the stock are drawn together—grasping thesquare—by means of the bolts CC, which areprovided with nuts D, having milled heads;dowell pins, ce, keep the parts in position. Thebolts, CC, pass through long slots, cc, in…
