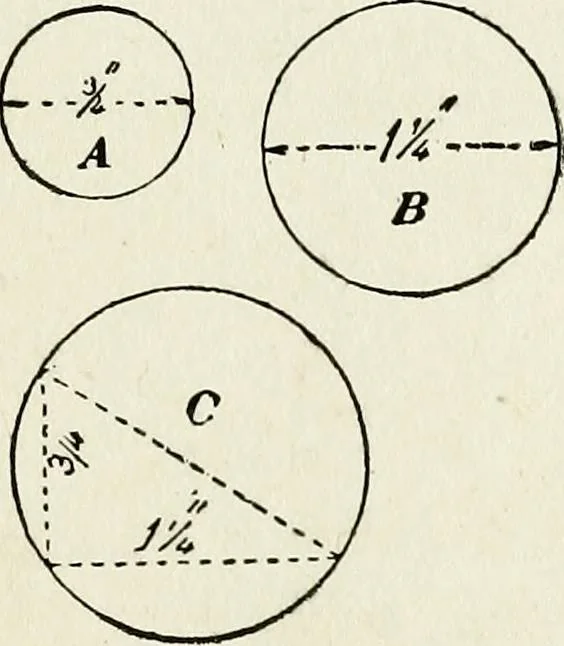

required circle,C. If there were threecircles we should set thediameter of the third onthe tongue and that of C on the blade, and thediagonal distance between these points wouldbe the diameter of a circle equal to the three,and so on for any number. This applies tosquares also. By this simple rule… … Fig. 42 THE STEEL SQUARE 85 triangles, rectangles, hexagons, octagons, etc.—taking similar dimensions only, that is, if theshortest side of one triangle is taken, theshortest side of the other must be taken also,and the answer gives the shortest side of therequired triangle. Three Points Not in a…
