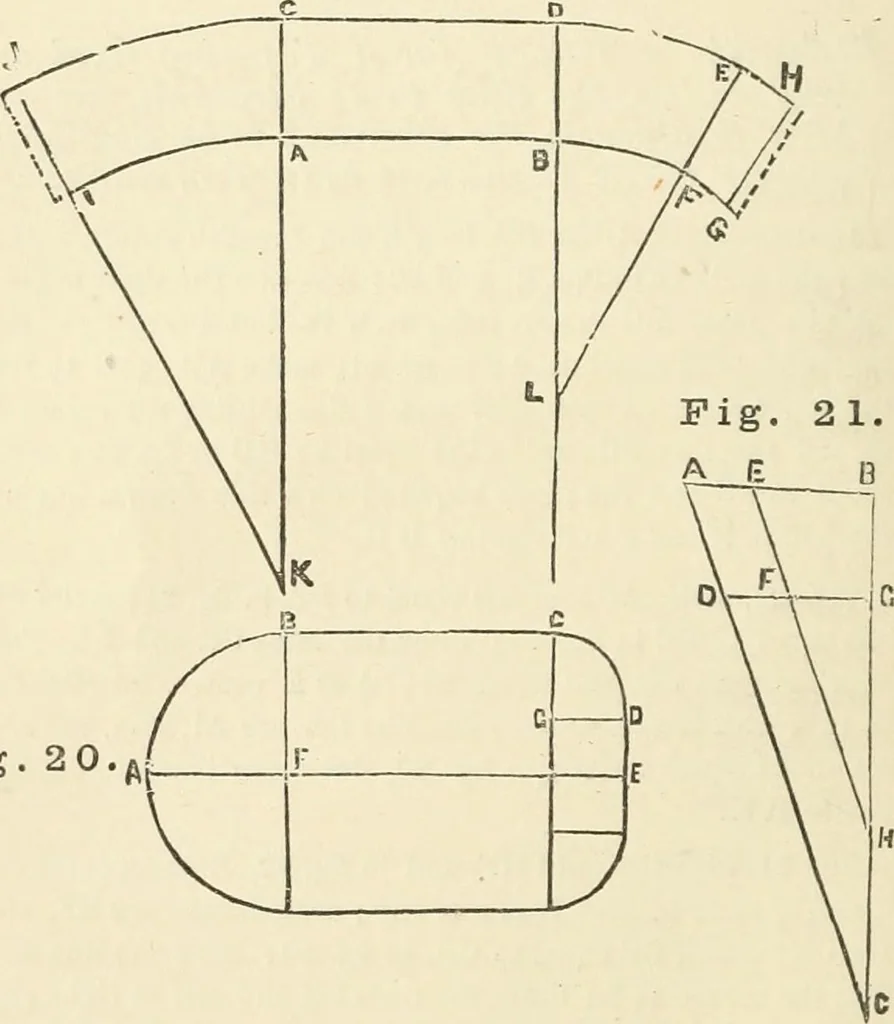

et off AI equal to AB, in fig. 20, draw the line JI, cutting thecentre at K. Fig. 21, with the radii HF, and in fig. 22, B as a centre cut theline DL, as at L, with L as a centre; describe the arc BF, also thearc DE ; set ofFBF equal to CD, in fig. 20; draw the line EF, cut-ting the centre at L;… … Pig.20. FOIi DESCRIBING TaTTERNS. 23 OVxVL. To describe a Pattern for a Taperinfj Oval or Ob-long article, the sides to be Straight, with Semi-circle ends, to be in Two Sections. Describe the bottom, the length and breadth required as in fig.23, the body as in figs. 24 and 25. Describe the right…
