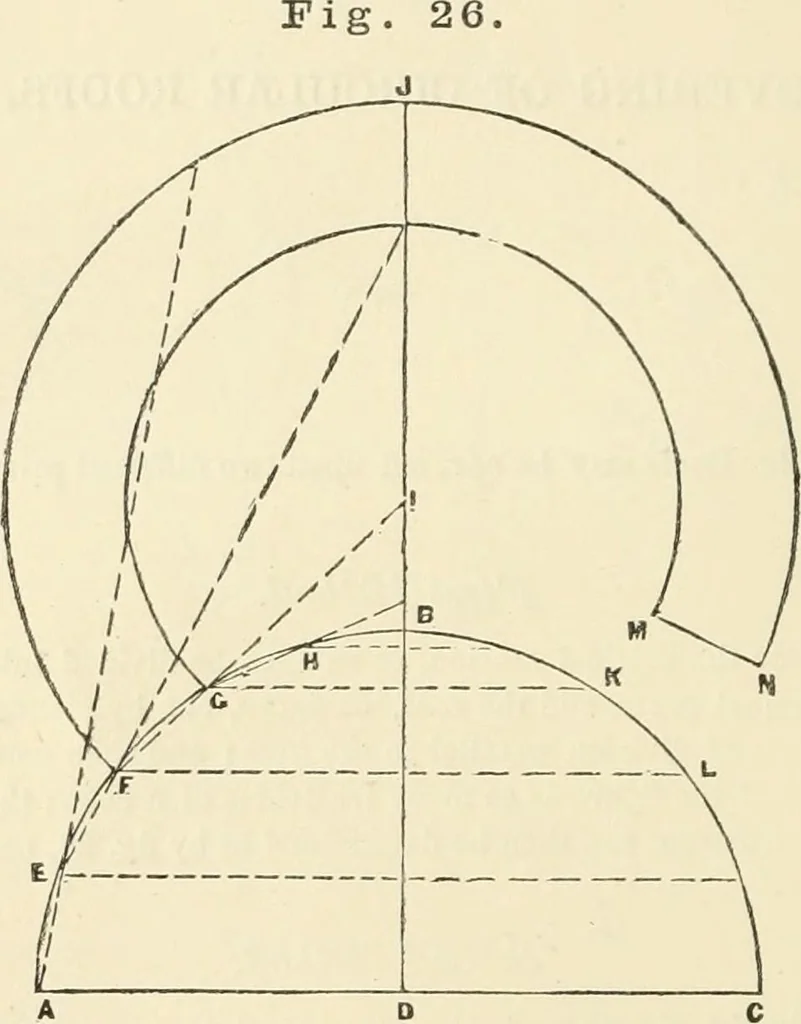

oughthe points of division parallel to the base; and then consider theportions of the figure as so many frustrums of a cone ; the surfaceof each frustrum can then be determined as by fig. 26, page 26. Second Method. Divide the circumference of the base into a number of equalparts, and assume… … Let ABC, fig. 26, be the section of a dome. Draw the axisDB ; produce to J ; divide the curve of one-half the figure intoequal parts, as EFG and H, the width of these divisions being th«width required by that of the metal with which the dome is to becovered ; produce AE, EF, FG, GH, and HB,…
