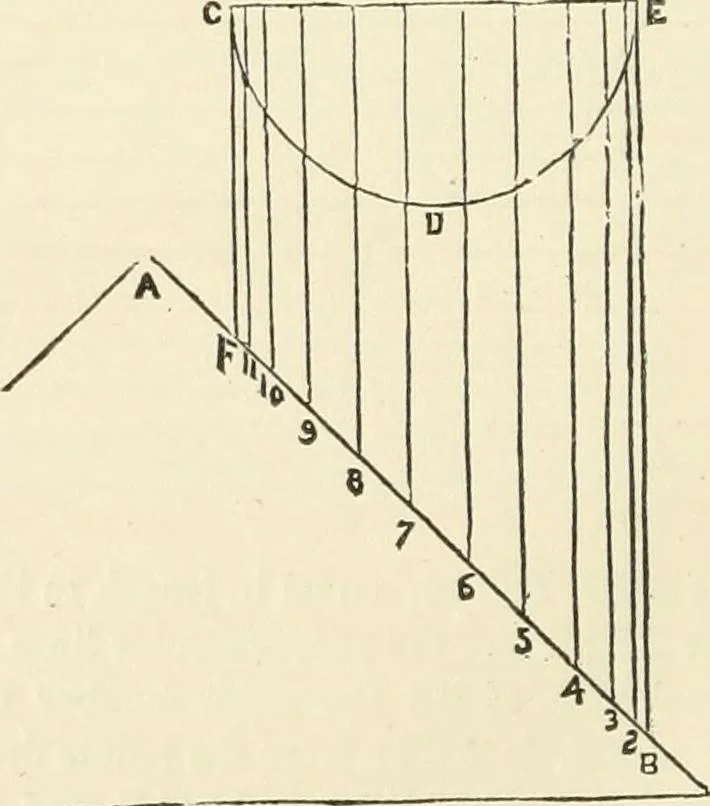

D, BE andCH; set off on each side of BE the same number of equal dis-tances, as in the semicircle ACB; from the points draw lines par-allel to BE ; make BE equal to EB; make AD and CF equal toDA ; also, each of the parallel lines bearing the same figures as11, 22, 33, &c.; then a line traced… … Let AB, fig. 57, equal the angle of the roof of a building; let,IE, FB equal the pipe; draw the line CE; describe the semi--ircle CDE; divide the semicircle into any number of equal parts;from the points draw lines parallel to EB, as 2, 8, 4, &c, FOR DESCRIBING PATTERNS. 59
