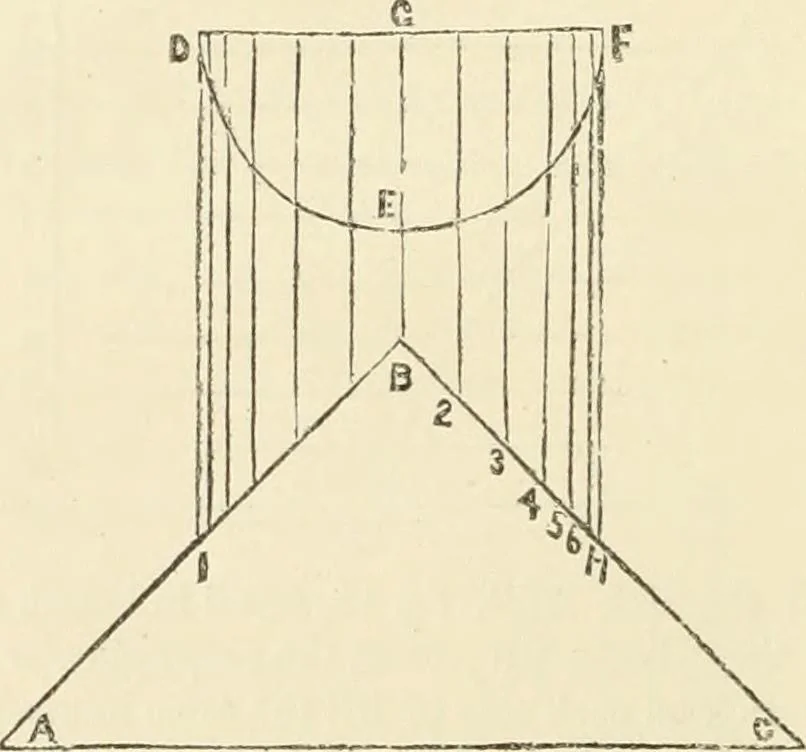

ect the perpendicular lines AD,BE and CF; set off on each side of BE the same number of equaldistances, as in the semicircle CDE; fcom the points draw linesparallel to BE; make BE equal to BE ; make AD and CF equaltc FC ; also, each of the parallel lines bearing the same numberas 22, 33, 44,… … Let ABC, fig. 59, eqnal the pitch of a roof; let DF, lEf, be theDipe ; draw the line BG parallel to HF; draw the line DF at rightangle to HF; describe the semicircle DEF; divide one-half thesemicircle into any number of equal parts; from the points drawlines parallel to FH, as 2, 3, 4, &c. FOB…
