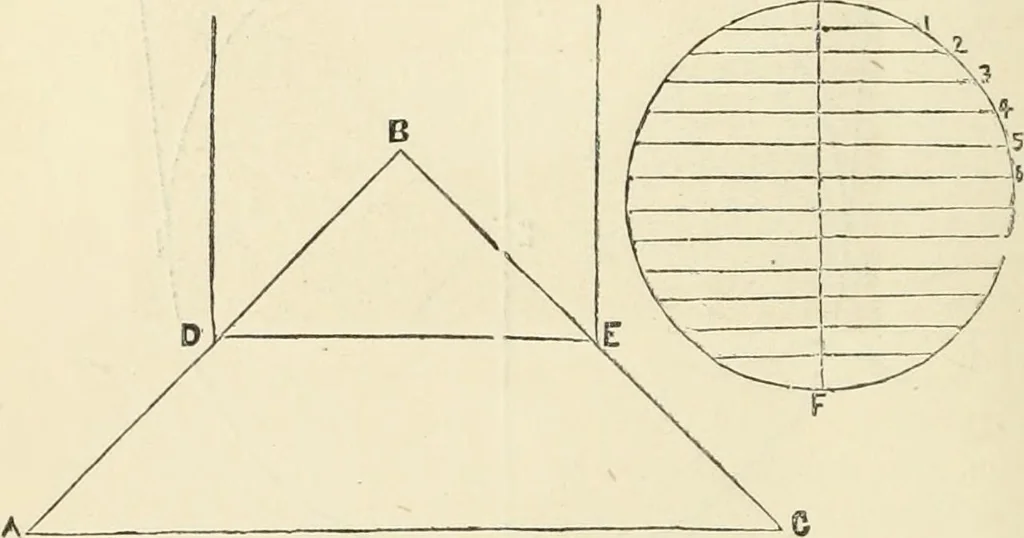

iameter than the breadth ofthe bottom; let FG be three-eights of an inch; then apply thecorner of the square on the line AB, allowing the blade to cut thecircle at I and the tongue at the point G; draw the lines GB, BH,also the lines GA, AH; allow one-eight of an inch for an edge,as shown by the… … Let ABC, fig. 74, be the pitch of the roof; make DE equal totne diameter of the pipe ; describe the circle FG ; make FG thesame in diameter as the pipe ; draw the line FG ; set off on theline FG any number of equal parts; from the points draw lines atright angle to FG as 1, 2, &c. FOR…
