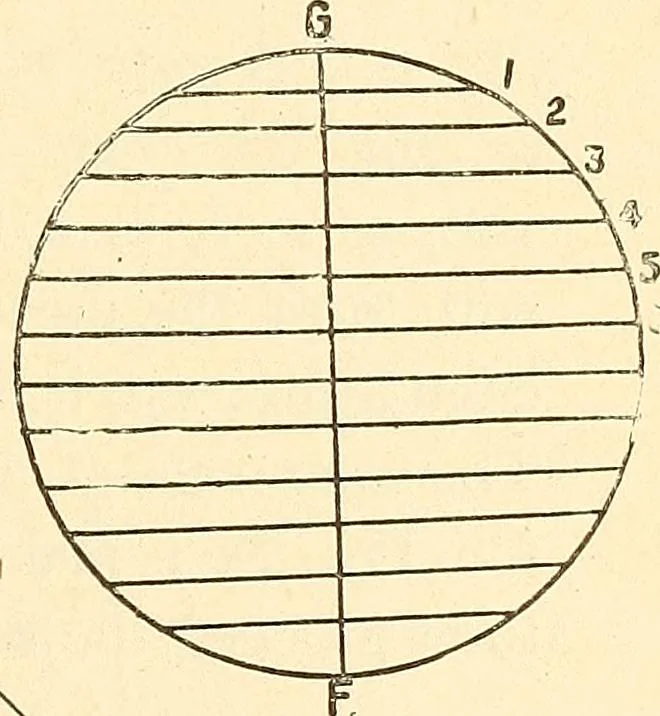

ig- 105 106. be the pitch of the roof; make DE equal to the diameterof the pipe; describe the circle FG (Fig. 106); makeFG the same in diameter as the pipe ; draw the line FG;set off on the line FG any number of equal parts; fromthe points draw lines at right angle to FG, as i, 2, etc. 90 TIN…
