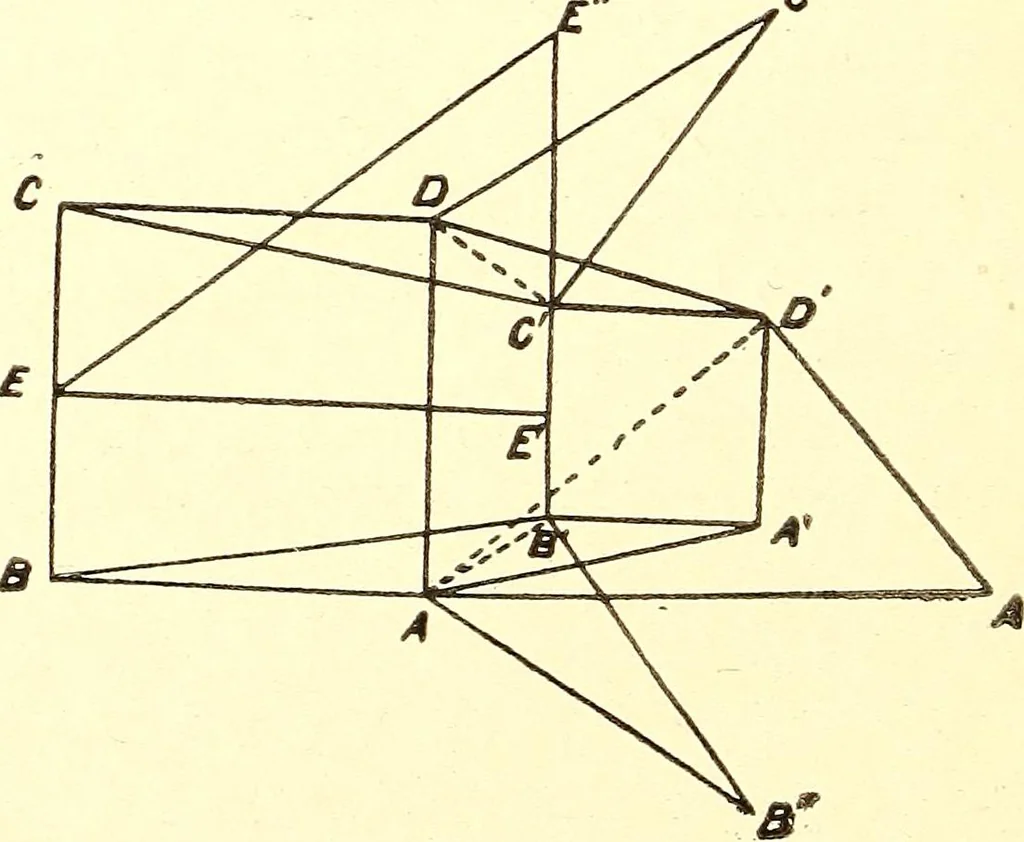

ect BC in E and draw EE perpendicular toBC and equal to EE (Fig. s^)- Through E draw BCparallel to BC ; make EC and E B each equal to half thelength of the top edge of the BC face, through C and Bdraw CD and BA parallel to CD and BA; make CDand BA each equal to B C; join DA, also AA, BB,CC and DD;… … Pig- 37-Pyramid, the Plan oftJie Frustum and its Height being given.—Let ABCDDABC (Fig. 37) be the plan of the frus-tum. From any point E in BC draw EE perpendicularto BC and BC of the frustum. Draw EE perpendic-ular to EE and equal to the height (which either is OVAL. ^ given or can be found as in…
