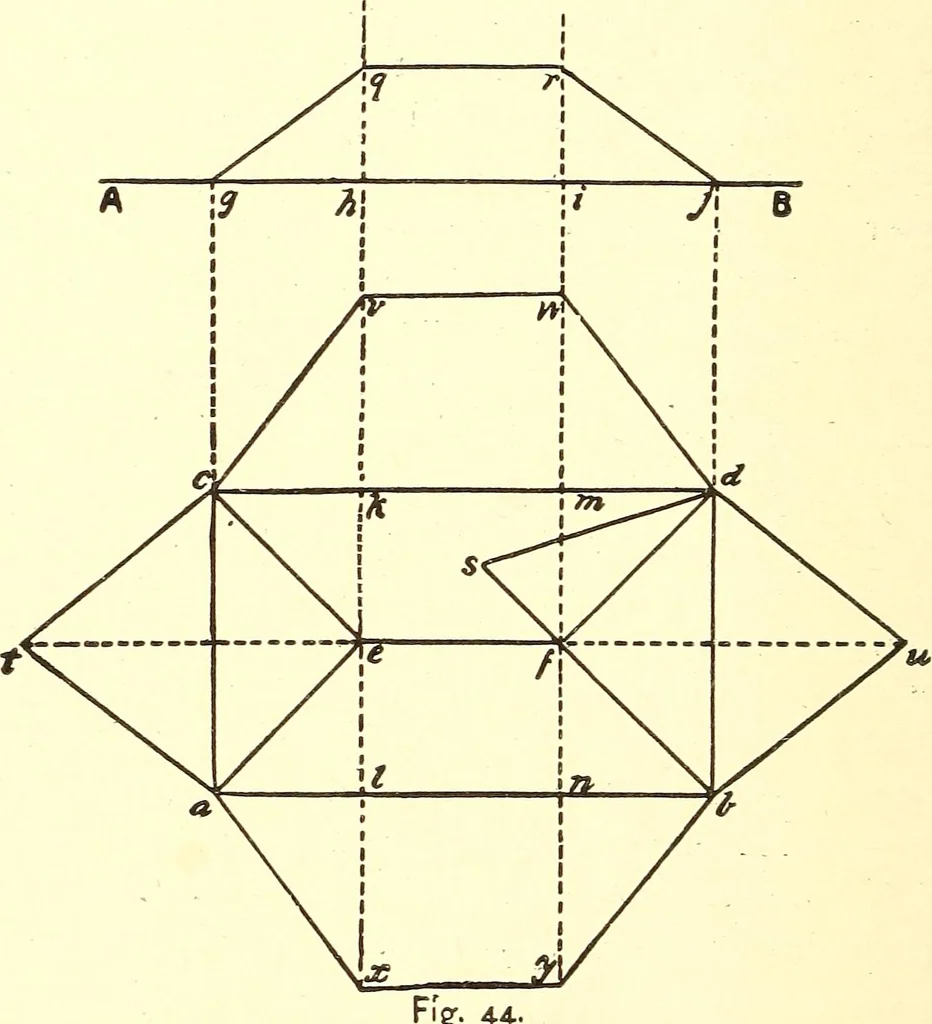

ter de-pendent on the taste or defined purpose of the architect.This triangle will then be the shape of the truss at thispoint, and is the section across the roof. Make h q and / r in Fig. 45 equal to ^ / in Fig. 46.Draw^^, q r and ry, which will complete the elevation,and this will also be the… … Z 44- angles iofd. Join ds, then the right-angled triangle, dfs,is the true shape of the hip truss. This will be understood
