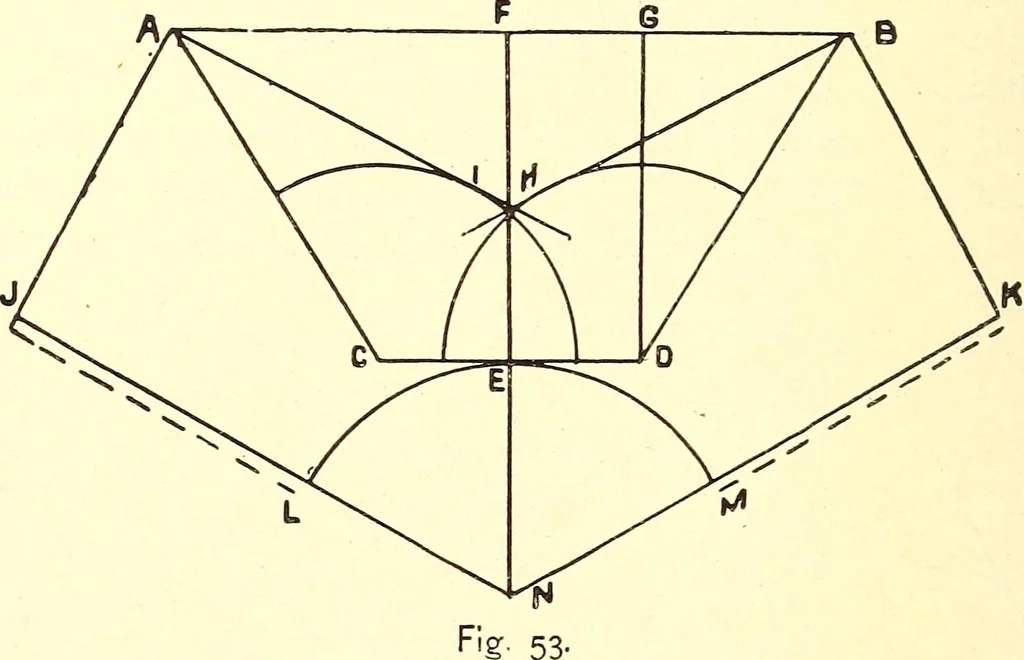

B equal toFB, and draw the lines JL and KM at right angles to JAand KB; also, the lines LC and MD at right angles to LJand MK. Edges to be allowed. SQUARE BASE WITH A CIRCULAR TOP.To describe a Pattern for a Tapering Article, the Base ti? 42 TIX, SHEET-IRON AXD COPPER-PLATE WORKER. be Square, and… … equal in length to one side of the base; make CD equal inlength to one-fourth the circumference of the top, and drawthe lines AC and BD; C and D as centres, with a radiusequal to one-half the difference of the two ends describe thearcs I and H; draw the right-angle lines lAJ and HBK;set off J A and…
