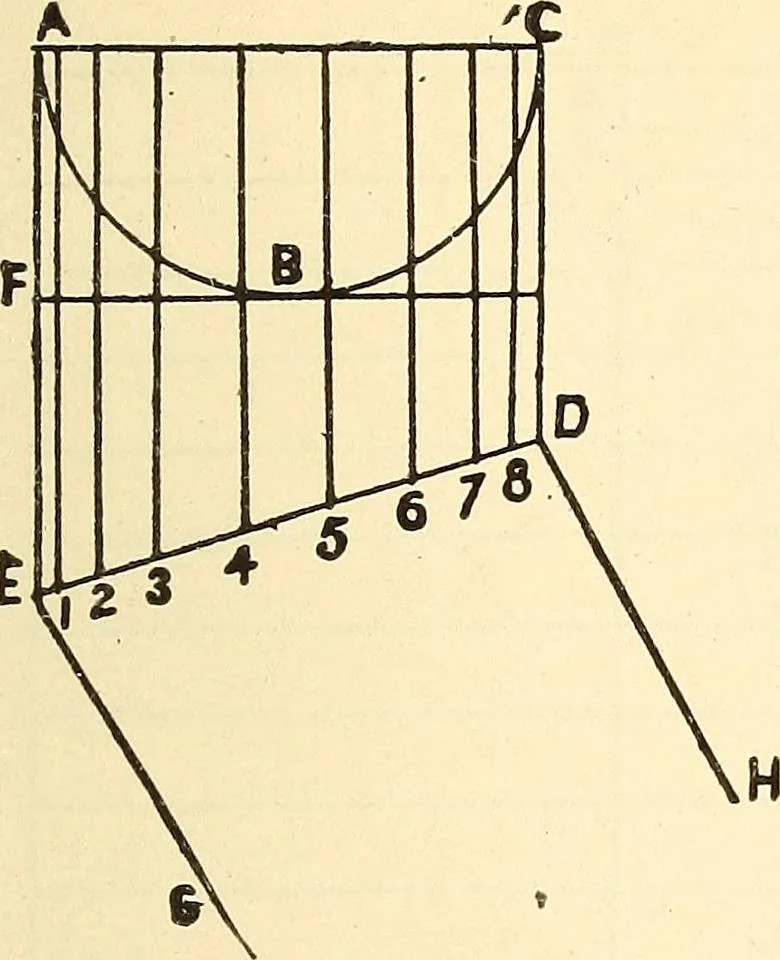

; draw the linesEG and DH, the angle required ; draw the line ED, cuttingthe points E and D ; divide the semicircle into any num-ber of equal parts; from the points draw lines parallel toAE, as I, 2, 3, etc. Then set off tlie line AB (Fig. 61)equal in length to the semicircle ABC ; erect the lines… … Fig. 60. Fig. 61. Make BD equal to EA, and AC equal to DC; also, eachof the parallel lines bearing the same figures as i, 2, 3, etc. ;then a line traced through the points will form thepattern. To describe a Fat tern for a Miter Joint for an O G Gutterat Right Angles.—Let ABCD (Fig. 62) be the…
