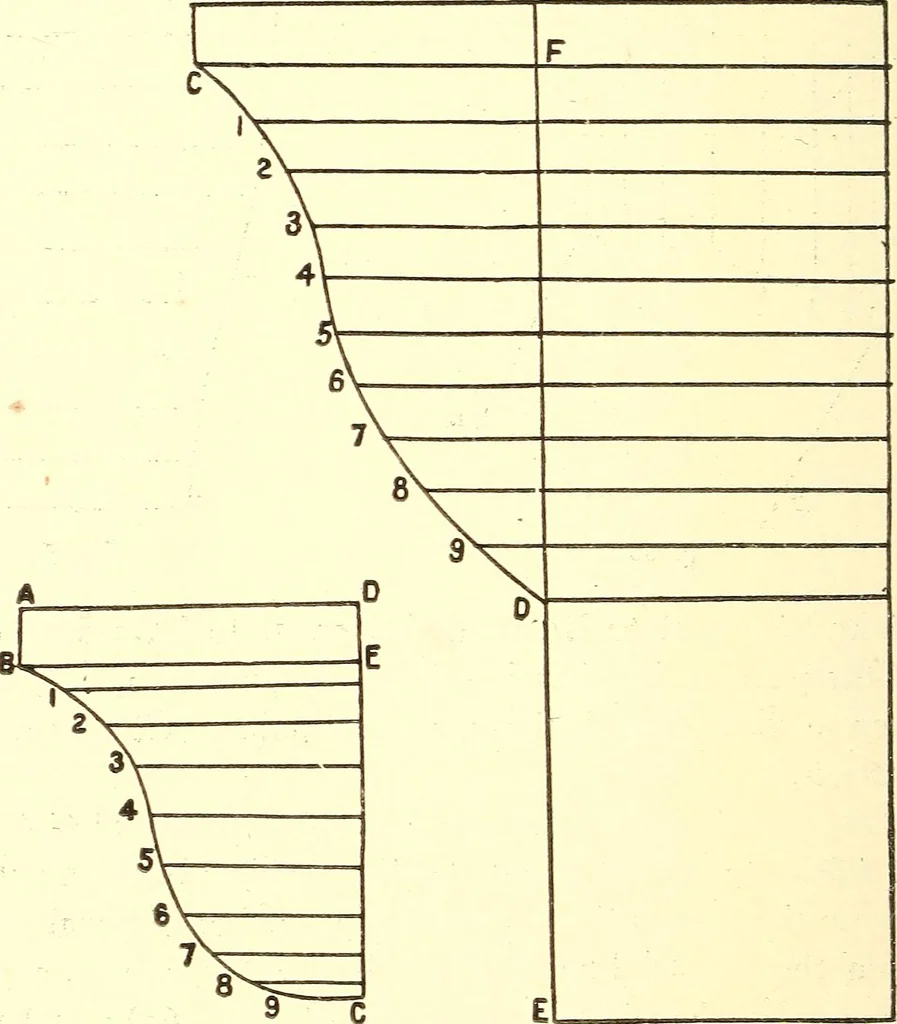

al in length to AD (Fig. 62), anddraw the line AC ; make FD equal in length to the curvedline BC (Fig. 62) ; set off on the line FD the same numberof equal distances, as in the curved line BC (Fig. 62) ;from the points draw lines parallel to CF, as i, 2, 3, etc. ;make CF equal to BE (Fig. 62) ;… … 9^C Fig. 62. Fig. 63. CORNICE. To describe a Pattern for a MiteJ- Joint for an O G Corniceut Right Angles ; also an Ofset.—DQScnbQ the right-angled/ine AFE (Fig. 64); let ABCDE be the given cornice ;divide the curved line BCH into any number of equalparts; from the points draw lines parallel to AF,…
